R1443

New

Preamplifier Unit for He3 Tubes

Features

  • Specifically designed for neutron detectors as He3 in position sensitive application
  • 19” rack unit (height = 2U)
  • External HV input on SHV connector (feeding the internal decoupling circuits)
  • Detector inputs on SHV connectors
  • Test input on BNC (1 pF charge injection capacitors)
  • Total gain 2.25 V/pc
  • Rate capability: >100 kHz per tube
  • Differential outputs on RJ45 connectors

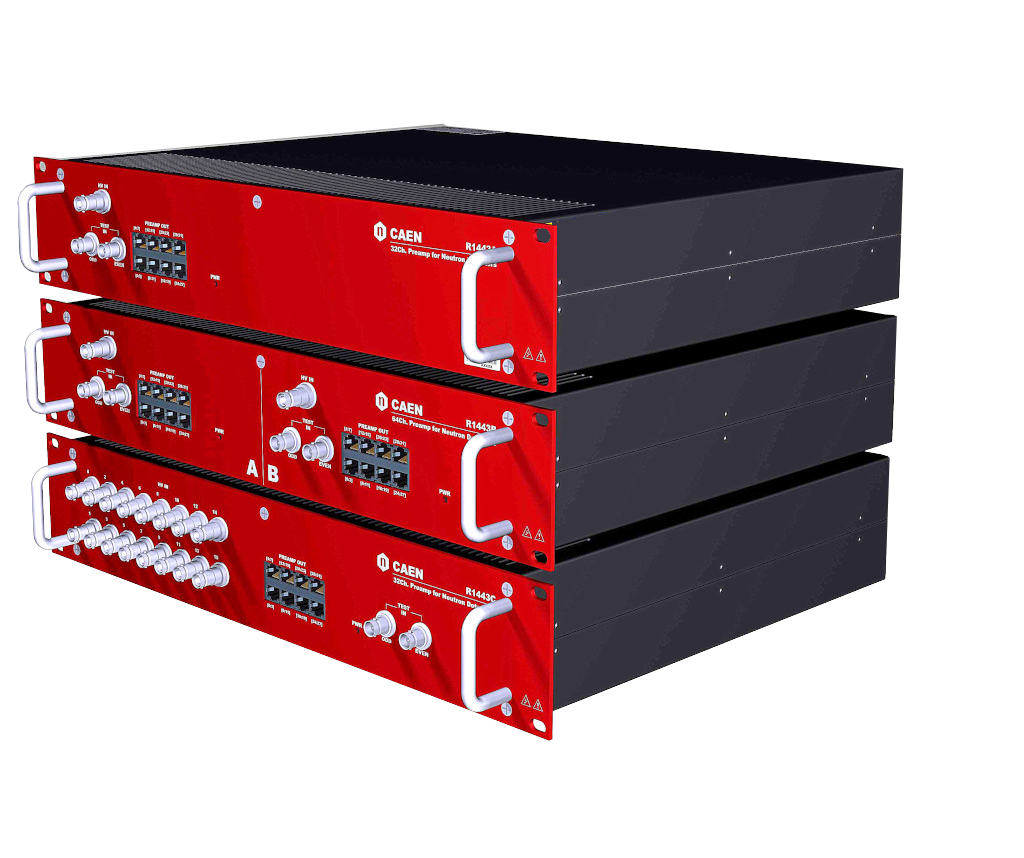

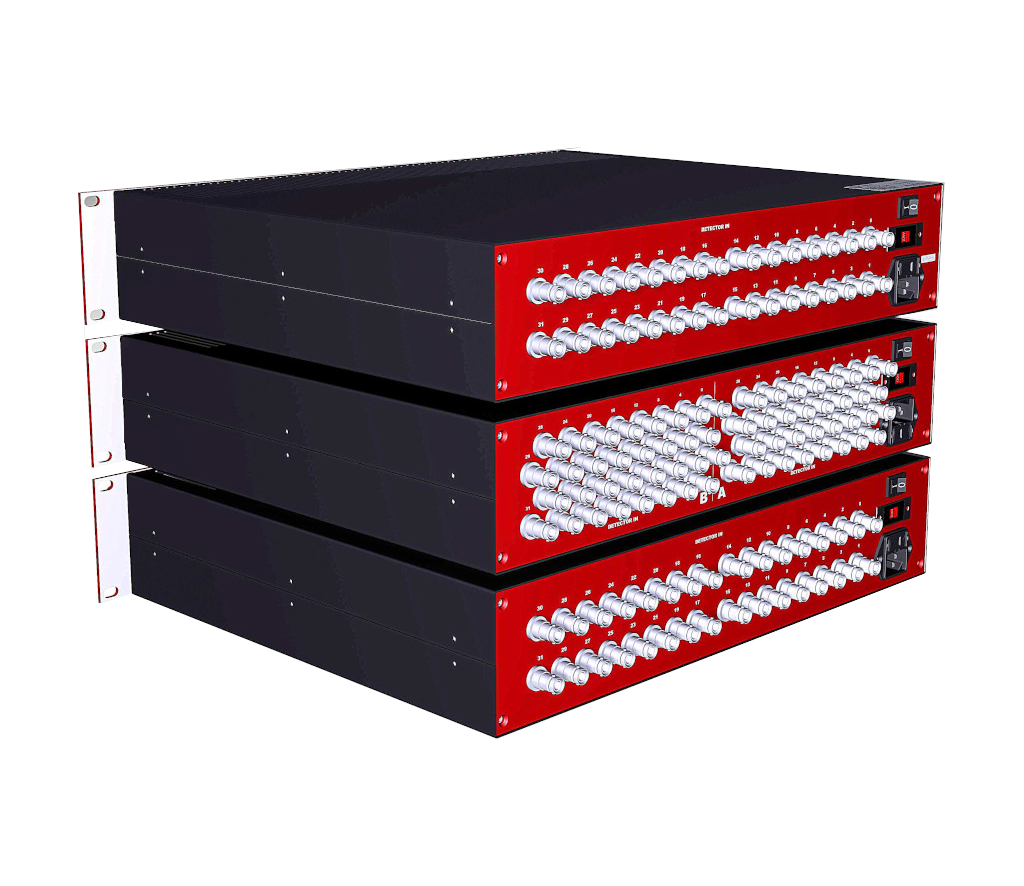

  • Three available versions:
    • 32 channels – R1443A
    • 64 channels – R1443B

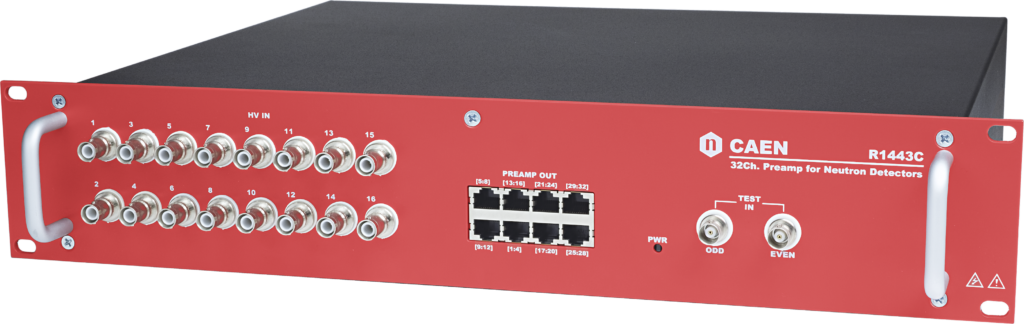

    • 32 channels with 16 independent HV inputs (1 per tube) – R1443C

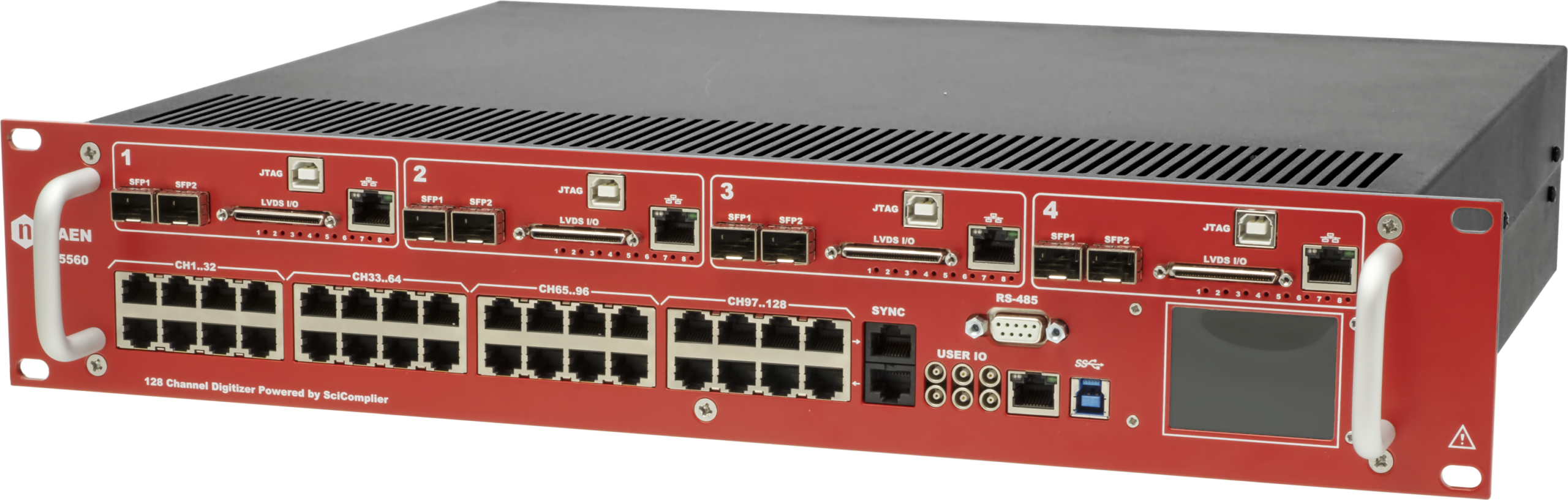

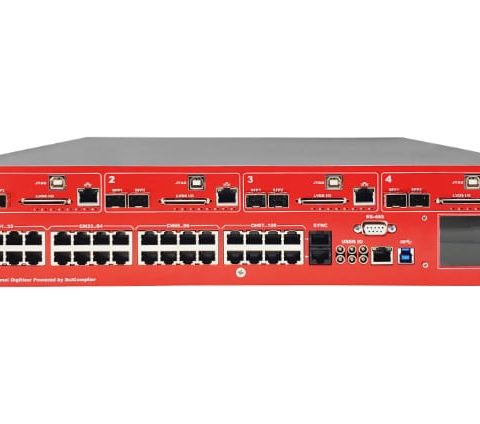

  • Full position-sensitive 3He acquisition system in combination with R5560 digitizer
  • 240 or 100 Vac, 50-60 Hz input available

Overview

The CAEN Mod.R1443 is a 32/64 channels Charge Sensitive Preamplifier in a 19ʺ rack unit. It has been developed in collaboration with Institut Laue-Langevin in Grenoble, France, and it is specifically designed for operating with neutron detectors as 3He or BF3 tubes. Given the number of input channels, it can handle up to 16/32 position-sensitive tubes, each tube having two outputs, one for each end. The pre-amplifier has an exponential time constant of 1 µs. This guarantees excellent performances even at high rates exceeding 100 kcps. The output of this preamplifier is typically readout by ADC and Digital Pulse Processing electronics in order to perform specific filtering to achieve the best charge, timing and axial position measurements. The R1443 is 120/230 V 50/60 Hz AC Powered.

Here you can find the link at the “MIRACLES detector prototypes and front-end electronics: integration, tests and some lessons learned” presented in DENIM (Design and Engineering of Neutron Instruments Meeting) on September 2023 at Forschungszentrum Jülich in Germany.

Technical Specifications

Mechanical
  • Form Factor: enclosure 19” rack-mount (height: 2U; d: 360 mm)
  • Weight 8.8 kg (R1443C)
Power consumption
  • Voltage range: 120 or 230 Vac
  • Frequency: 50/60 Hz
  • Max Power: 2.5 W (32-ch version)
Detector input

Accepts positive and negative input charge pulses from  detectors and supplies the HV bias to the detector itself;

  • Input connector: SHV
  • AC coupled – 22 MΩ to VBIAS
  • Positive or Negative Charge Input polarity
  • ESD protected input
HV In (Detector Bias)
  • Bias connector: SHV
  • HV BIAS input/ Detector bias voltage ±2000 VMax
    • R1443A: HV IN
    • R1143B: HV IN  Section A  HV IN  Section B
    • R1443C: HV IN [0..15] HV IN [i] Bias DETECTOR IN [2i, 2i+1]
Test-In
  • 2 input, one for even and one for odd channels
  • Ctest: 1 pF
  • 50 Ω Impedance
  • 2 BNC connector (per Section)
    • A/B for R1443A (16-ch.)
    • A/B for R1443B (32-ch.)
    • A/B for R1443C (16-ch.)
Preamplifier (Analog Out)
  • Charge sensitive preamplifier
  • Charge range ± 0.8 pC
  • Sensitivity: 2.25 V/pC (preamp = 1 V/pC + 2nd gain stage = 2.25 V/V, customizable)
  • Cross talk < 1%
  • Resolution: ~20 keV (with a FSR of 36 MeV) measured with a 2745 digitizer with DPP-PHA FW with trapezoidal filter parameters:
    • Rise Time = 2 us
    • Flat Top = 0.6 us
    • Tau = 0.95 us
  • Output signal rise time: <20 ns
  • Output signal decay time: 1 µs
  • Input residual Noise: about 0.8 fC (5000 e)
  • Max output amplitude: 4 V differential on 100 Ω termination
  • Outputs on RJ45 connectors
Environmental

Indoor use:

  • Operating Humidity: 10% ± 90% RH non condensing
  • Storage Humidity: 5% ± 90% RH non condensing
  • Pollution Degree: 2
  • Altitude: <2000 m
  • Overvoltage Category: II
  • EMC Environmental Commercial
  • Operating Temperature range: 0°C +50°C
  • Storage Temperature range: -10°C +80°C

Accessories

HV Cables
High Voltage Cable Assemblies
A148x
Inhibit - Kill Signal BNC Adapter for HV Power Supply Modules

Ordering Options

Code Description
WR1443XAAAAA R1443A 32 channels Preamplifier unit for gaseous detectors   RoHS
WR1443XBAAAA R1443B 64 channels Preamplifier unit for gaseous detectors   RoHS
WR1443XCAAAA R1443C 32 channel Preamplifier unit for gaseous detectors with independent HV   RoHS
