NIM8303

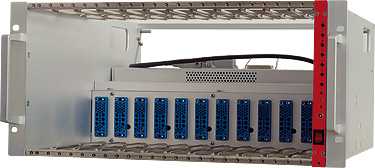

5U 12 slot 300/600 W Crate
Features
- 19″ x 5U enclosure
- 12 slot non-ventilated NIM bin
- Pluggable linear power supplies (300/600 W)
- 230 VAC or 115 VAC, 50-60 Hz input available
- Equipped with long-life NIM connectors
- Short circuit protection
- Over / Undervoltage protection
- Over temperature protection
- Control panel with mains switch, control LEDs and LEDs / test pins for all outputs
Overview
The CAEN Mod. NIM8303 is a 5U Non ventilated NIM crate (19inch-12 slot) available with both pluggable 300W and 600W power supplies. Safety features include: short circuit protection, Over / Undervoltage protection, Over temperature protection.
The Unit is powered by 110 or 220 Vac, 50 ÷ 60 Hz. The Mod NIM8303 is equipped with a Control panel with mains switch, status LEDs, FAIL output (LEMO 00) and test pin for all DC voltages.
Technical Specifications
- Mechanics
19″ x 5U bin, 12 slot, non ventilated; depth: 575mm (including handles)
- Mains input
220 VAC or 115 VAC, 50-60 Hz.
- Fuse External
4 A Class T @ 300W 230 Vac 8 A ClassT @ 300W 115 Vac
6.3 A Class T @ 600W 230 Vac 15 A Class T @ 600W 115 Vac
- Output power
300W:
17A @ ±6V
3.4A @ ±12V
3.4A @ ±24V600 W:
45A @ ±6V
8A @ ±12V
8A @ ±24V20A @ ±6V
15A @ ±12V
8A @ ±24V45A @ ±6V
18A @ ±12V
±24V not present
- Isolation
CE acc. to EN 61010
- Power requirements
610W and 1150W (for 300W and 600 W) at full load
- Status control
±6V, ±12V, ±24V LED and test point; GND test point; ALARM signal, STATUS, OVERHEAT and OVERTEMPERATURE LED
- Output Current Characteristic
Foldback (Isc < 3 A Imax = I nominal + 15%) and Trip Off
- Output Impedance
0.3 mohm static
- Output Voltage Characteristic
dual tracking for all ±DC outputs
Soft start
DC output calibration (manually)
- Noise and ripple
< 3 mVpp @ ±6V, ±12 V, ±24 V (Typ.)
< 5 mVpp @ ±6V, ±12 V, ±24 V (Max.)
- Temperature sensors
Power Supply: nr. 4 @ 300W nr. 2 @ 600W
- Over Voltage Protection
Trip Off when the output voltage > 105% of nominal voltage
- Under Voltage Protection
Trip Off when the output voltage < 95% of nominal voltage
- Over TemperatureProtection
Trip Off when temperature of heat sink > 70° C or when transformer temperature > 110° C
- Operation
0 ÷ 40°C without derating
Compare
Compare with Powered Crates.
Loading...
Accessories
- A83xx

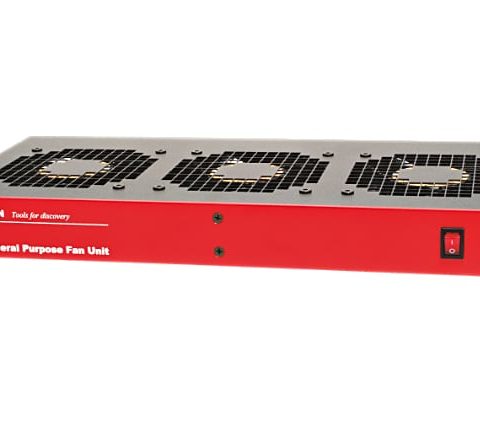

- General Purpose 1U Fan Unit
Ordering Options
| Code | Description |
|---|---|
| WNIM8303300W | NIM8303/30 - NIM 5U crate, 12 slot, 300W (±6V 17A, ±12V 3.4A, ±24V 3.4A) RoHS |
| WNIM8303600W | NIM8303/60W - NIM 5U crate, 12 slot, 600W (±6V 45A, ±12V 8A, ±24V 8A) RoHS |
| WNIM8303600Y | NIM8303/60Y - NIM 5U crate, 12 slot, 600W (±6V 20A, ±12V 15A, ±24V 4A) RoHS |
| WNIM8303600Z | NIM8303/60Z - NIM 5U crate, 12 slot, 600W (±6V 45A, ±12V 18A, NO 24V) (Discontinued) RoHS |
