NIM8302P
5U 5 slot 150 W Portable Crate
Features
- Low cost compact solution
- 270 mm x 5U, 7 slot (5 free) enclosure
- 7 slot non-ventilated NIM bin (5 free slots)
- Slot linear power supply (150 W)
- Equipped with long-life NIM connectors
- Short circuit protection
- Over / Undervoltage protection
- Over temperature protection
Overview
The CAEN Mod. NIM8302P is a portable (5 slot free) non ventilated NIM crate provided with pluggable 150W power supply.
Safety features include: short circuit protection, Over/Undervoltage protection, Over temperature protection. The Unit is powered by 110 or 220 Vac, 50 ÷ 60 Hz. On the front panel the status of power supply is indicated by green/red LED.
Technical Specifications
- Mechanics
270 mm x 5U, 7 slot (5 free), non ventilated; portable version; weight: 11kg
- Mains input
230 VAC or 115 VAC, 50-60 Hz.
- Maximum Total OutputPower
150 W
- Fuse External
External 2 A, class T (230 VAC)
- Power requirements
280W at full load
- Output power
5 A @ ±6V 3 A @ ±12 V 1.5 A @ ±24 V
- Isolation
CE acc. to EN 61010
- Load Regulation
< 0.5 % for 10-100% load change, < 0.02 % for ±10% line change
- Ripple
±6V < 5 mVpp ±12 V < 8 mVpp ±24 V < 10 mVpp
- Transient response recovey
0.15 ms for recovery to ±1% of voltage for 10-100% load change
- Output Impedance
0.6 mohm static
- Output Voltage Characteristic
dual tracking for all ±DC outputsSoft startDC output calibration (manually)
- Output Current Characteristic
OVC protection / Trip Off
- Over Voltage Protection
Trip Off when the output voltage > 130% of nominal voltage
- Under Voltage Protection
Trip Off when the output voltage < 70% of nominal voltage
- Over Current Protection
Trip Off when current: >6A@+24V, >2A@-24V, >6A@+12V, >3.75A@ 12V, > 10A@±6V
- Over TemperatureProtection
Trip Off when temperature > 75° C
- Temperature sensors
nr.1
- Status control
Fail/Status LED signal
- Operation
0÷45°C without derating
Compare
Compare with Powered Crates.
Loading...
Accessories

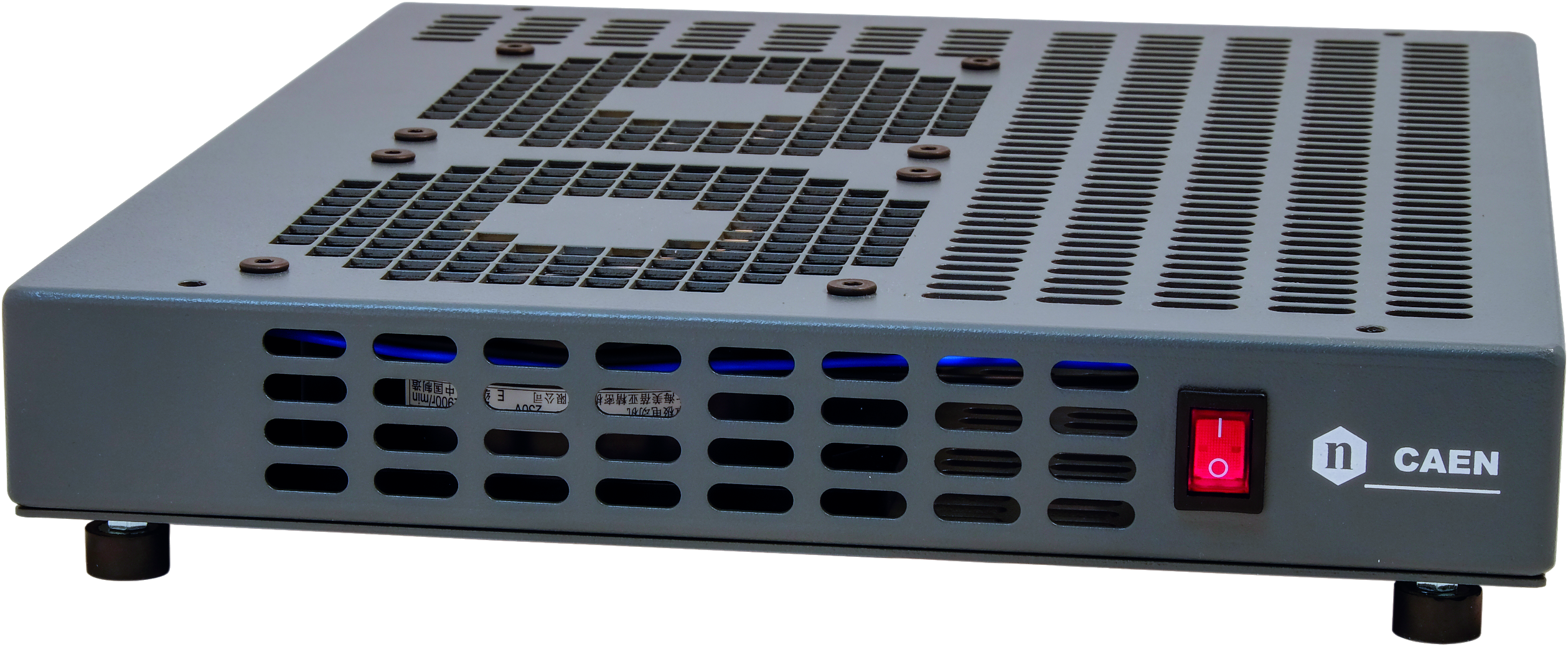

- A83Px

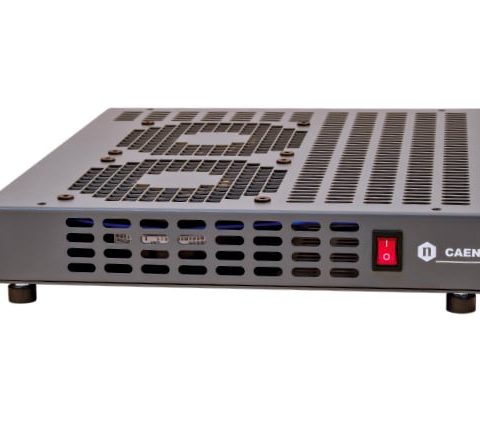

- General Purpose 1U Mini Fan Unit
Ordering Options
| Code | Description |
|---|---|
| WNIM8302P150 | NIM8302P/15 - NIM Portable crate, 5 slot, 150W (±6V 5A, ±12V 3A, ±24V 1,5A) RoHS |
