NIM8302

5U 10 slot 150 W Compact Crate

Features

  • Low cost compact solution
  • 19″ x 5U enclosure
  • 12 slot non-ventilated NIM bin (10 free slots)
  • Slot linear power supply (150 W)
  • Equipped with long-life NIM connectors
  • Short circuit protection
  • Over / Undervoltage protection
  • Over temperature protection

Overview

The CAEN Mod. NIM8302 is a compact (10 slot free) non ventilated 5U NIM crate (19″) provided with pluggable 150W power supply.
Safety features include: short circuit protection, Over/Undervoltage protection, Over temperature protection. The Unit is powered by 110 or 220 Vac, 50 ÷ 60 Hz. On the front panel the status of power supply is indicated by green/red LED.

Technical Specifications

Mechanics

19″ x 5U bin, 12 slot (10 slot free), non ventilated

Mains input

230 VAC or 115 VAC, 50-60 Hz.

Maximum Total OutputPower

150 W

Fuse External

External 2 A, class T (230 VAC)

Power requirements

280W at full load

Output power

5 A @ ±6V
3 A @ ±12 V
1.5 A @ ±24 V

Isolation

CE acc. to EN 61010

Load Regulation

< 0.5 % for 10-100% load change, < 0.02 % for ±10% line change

Ripple

±6V < 5 mVpp
±12 V < 8 mVpp
±24 V < 10 mVpp

Transient response recovey

0.15 ms for recovery to ±1% of voltage for 10-100% load change

Output Impedance

0.6 mΩ static

Output Voltage Characteristic
  • dual tracking for all ±DC outputs
  • Soft start
  • DC output calibration (manually)
Output Current Characteristic

OVC protection / Trip Off

Over Voltage Protection

Trip Off when the output voltage > 130% of nominal voltage

Under Voltage Protection

Trip Off when the output voltage < 70% of nominal voltage

Over Current Protection

Trip Off when current: >6A@+24V, >2A@-24V, >6A@+12V, >3.75A@ 12V, > 10A@±6V

Over TemperatureProtection

Trip Off when temperature > 75° C

Temperature sensors

nr.1

Status control

Fail/Status LED signal

Operation

0÷45°C without derating

Storage Temperature

-30 ÷ +80°C

Storage Humidity

5% ÷ 90% RH non-condensing

Compare

Compare with Powered Crates.

Loading...

Accessories

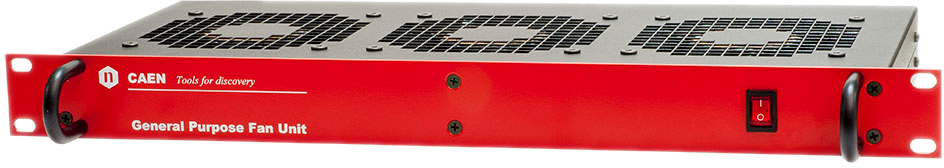

A83xx
General Purpose 1U Fan Unit

Ordering Options

Code Description
WNIM8302150W NIM8302/15 - NIM 5U Compact crate, 10 slot, 150W (±6V 5A, ±12V 3A, ±24V 1,5A)   RoHS
