N638

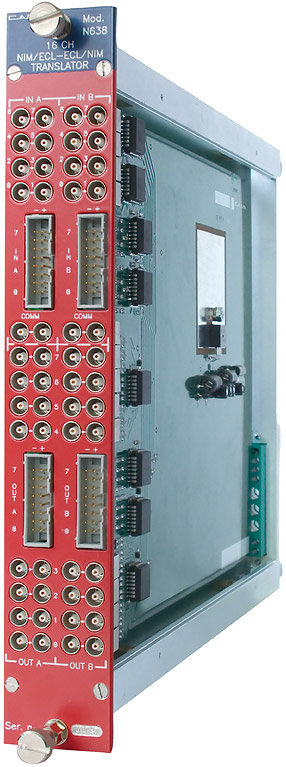

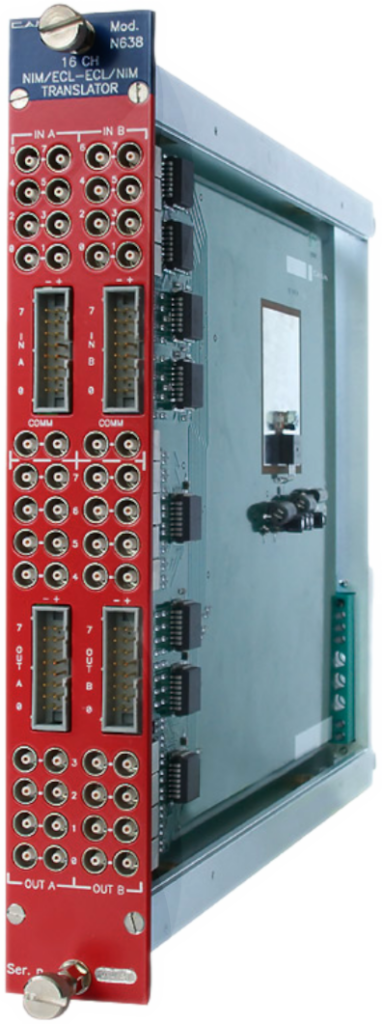

16 Channel NIM-ECL/ECL-NIM Translator and Fan Out

Request a quote
Downloads

Features

  • 16 independent NIM to ECL/NIM and ECL to NIM/ECL channels
  • NIM fan-out of two
  • 300 MHz maximum operating frequency
  • 2 COMMON IN input with a fan-out of 16 NIM and 8 ECL
  • I/O delay from 1.5 to 3.5 ns, depending on input type
More info
3 Years Warranty
placeholder
placeholder

Overview

The Mod. N638 is a standard NIM module housing 16 independent logic level translators.
Each of the 16 channels accepts a NIM or an ECL signal and provides two NIM and one ECL outputs. The NIM and ECL inputs of each channel are ORed prior to fan-out.
The maximum operating frequency is 300 MHz.
Two couples of front panel input bridged connectors accept two COMMON IN NIM signals; each common signal allows the use of the module as a fan-out of 16 NIM and 8 ECL signals.

Technical Specifications

Packaging

1-unit wide NIM module

NIM Inputs

NIM logic levels, 50 Ω impedance

ECL Inputs

ECL logic levels, 110 Ω impedance

COMM inputs

NIM Level, high impedance

Reflections

< 3%, tested with NIM input signals featuring: 0.8 ns rise/fall time, 50 ns FWHM, 1 KHz frequency

NIM A, B outputs

NIM levels on 50 Ω impedance

ECL outputs

Differential ECL levels on 110 Ω impedance

Output rise/fall time

< 0.5 ns (measured on NIM output)

Min. input FWHM

1.65 ns

Max. input frequency

300 MHz (NIM), 250 MHz (ECL), 200 MHz (COMM)

I/O delay (ECL to NIM)

<2 ns

I/O delay (NIM to ECL)

<3 ns

I/O delay (COMM to ECL)

<3.5 ns

I/O delay (COMM to NIM)

<3.5 ns

Compare

Compare with Translators.

Loading...

Ordering Options

Code Description
WN638XAAAAAA N638 - 16 Channel NIM-ECL/ECL-NIM Translator and Fan Out   RoHS
