N625
Quad Linear FAN-IN FAN-OUT
Features
- Four independent sections
- Bipolar inputs
- Four 4 Input + 4 Output Fan in/Fan out sections
- 1 Channel Discriminator featured
- Inverting or non-inverting mode independently selectable on each section
- 100 MHz bandwidth.
Overview

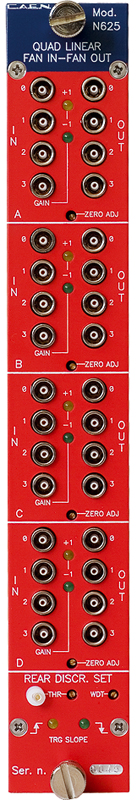

The Mod. N625 is a 1-unit NIM module which houses four 4 Input + 4 Output Fan in/Fan out sections and a Single Channel Discriminator.
Each Fan in/Fan out section produces on all its output connectors, the sum of the signals fed to the inputs. Fan in/Fan out inputs are bipolar, while the output can be either inverting or non inverting (jumper selectable independently for each section). Both input and output signals are DC coupled. Maximum input amplitude is ±1.6 V. Moreover each Fan in/Fan out section features a screwdriver trimmer which allows the DC offset adjustment. The discriminator channel has one DC coupled input (polarity is jumper selectable), the threshold is screwdriver adjustable and monitorable via test point; the output is NIM standard, its width is screwdriver adjustable as well. Front panel LEDs allow to monitor all the mode, gain and polarity adjustments performed via internal jumpers.
Technical Specifications
- Packaging
1 unit NIM module
- Inputs
50 Ohm impedance; DC coupled, bipolar
- Reflection
Less than 4% for inputs of 2 ns risetime
- Zero adjustment
±100 mV
- Outputs
DC coupled. All the unused inputs and outputs must be terminated for optimum output shape.
- Max. output amplitude
± 1.6 V
- Integral non-linearity
± 1% up to 1 V
- Interchannel insulation
<40 dB
- Input band width
100 MHz
- DC offset stability
<100 µV/°C
- Input/output delay
4 ± 1 ns
- Noise
< 300 µV rms
- Discriminator input
DC coupled on either leading or trailing edge (jumper selectable), 50 Ohm; 90 MHz max. frequency
- Discriminator max. input voltage
± 5V
- Discriminator min. detectable input
±10 mV
- Discriminator threshold range
±1200 mV
- Discriminator out
Std. NIM level, provided across a 50 Ohm load, non updating; two width ranges (adjustable): 5÷70 ns and 15÷600 ns
- Discriminator I/O delay
<11 ns
- Power Requirements
- +12 V : 110 mA
- -12V : 115 mA
- +6V : 230 mA
- -6V : 225 mA
Compare
Compare with Fan In - Fan Out Units.
Loading...
Ordering Options
| Code | Description |
|---|---|
| WN625XAAAAAA | N625 - Quad Linear Fan-In Fan-Out RoHS |
