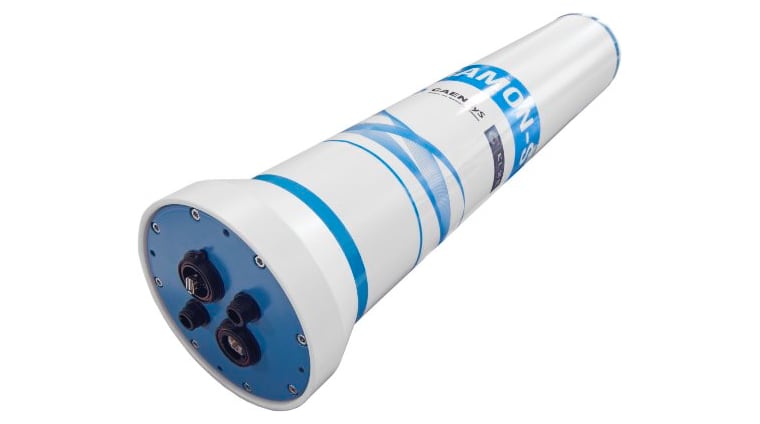

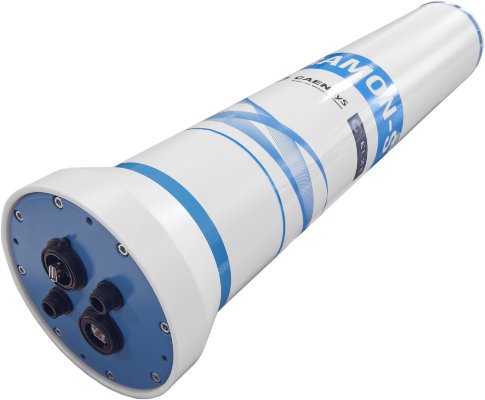

GAMON-S
Gamma Radiation Spectroscopy System for Real-Time Radiation Monitor
Features
- Gamma radiation spectroscopy system based on scintillation detector and Geiger-Mueller counter
- Based on an active standalone MCA device for the digitization of outdoor gamma spectroscopy signals (patented)

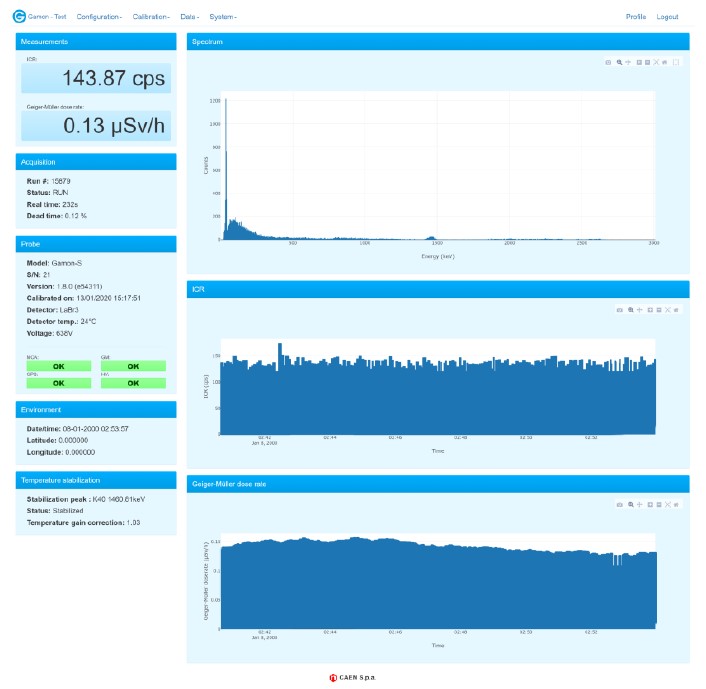

- Onboard web interface for easy configuration of isotope based alarms
- Internal database for summary reports and plots, easily generated by the embedded web interface
- Robust spectrum stabilization algorithms
- Big onboard data storage for long autonomous data taking
- Designed for operating outdoor in extreme weather conditions from -40 to +60 °C
- Robust case, designed to guarantee IP68, including the power and the communication connectors
- Suited for marine environmental survey thanks to the optional fiber glass external case
- Design for easy wall and pole mounting
- Wired and Wireless communication interfaces: USB 2.0, Ethernet, WiFi and 3G/4G LTE
- Configurable list of communication interfaces for selecting primary and backup interfaces
- Quick and easy to install and commission thanks to onboard web graphical interface
- Autonomous delivery of email and SMS on alarm to a configurable list of recipients
Overview
The GAMON-S spectrometer series has been designed for outdoor and indoor real-time radiation monitoring, for early environmental warning and emergency response. It can operate in harsh weather conditions and is protected from rain and moisture.
The GAMON-S can be deployed in a wide range of scenarios, as in permanent ring monitoring as well as in moving monitoring stations. Thanks to the integrated GPS the system position can be easily monitored real time. The GAMON-S spectrometer runs automatic isotope identification and isotope related dose rate evaluation. The real time data processing and the defined isotope-based alarm allow GAMON-S to detect the presence of artificial nuclides in a short time window and more effectively compared to traditional dose rate meters.
The gamma detector is composed by an inorganic scintillation crystal which can be either NaI(Tl), CeBr3 or LaBr3(Ce). NaI(Tl) is preferable its high light yield and moderate cost, LaBr3(Ce) for its excellent energy resolution and CeBr3 for its good energy resolution and low internal radioactivity.
The user can select the isotopes to be identified from the library and adjust the thresholds of the isotope related alarms. The spectrum stabilization is obtained with the identification of natural occurring radionuclides as the K-40.
CAEN offers both the GAMON-S as a stand alone unit for the integration in gamma monitoring networks or as integrated station including the stainless steel support structure, rain sensor, electronic cabinet with UPS, back up batteries and mobile communication modem. Photovoltaic power system can be provided for remote and unattended monitoring stations.
Field Installations
- Stand Installation
- Roof installation
- Shelter Installation
- Pole Installation
- Solar Panel
Technical Specifications
- Scintillation Detector
- Available scintillation crystals:
- LaBr3(Ce) 1.5” x 1.5”, 2” x 2”
- NaI(Tl) 2” x 2”, 3” x 3”
- CeBr3 1.5” x 1.5”, 2” x 2”
- Other dimensions on request
- NaIL™, LBC, CLLBC detectors on request
- Energy range: 50 keV ÷ 3 MeV
- Dose rate accuracy: 10%
- Available scintillation crystals:
- Geiger-Mueller
- Compensated dual tube dosimeter
- Energy range: 50 keV ÷ 2 MeV
- Dose rate range 10 nSv/h ÷ 10 Sv/h
- Sensors
- I/Os for external sensors or devices
- Rain sensor on request, on stations
- Internal temperature sensor
- GPS
- Wired Communication interfaces
- Ethernet RJ45
- USB 2.0 port
- Communication protocol TCP/IP
- Connector protection level IP68
- Wireless communication interfaces
- 3G/4G LTE
- WiFi
- Radio communication (frequencies based on request)
- Data acquisition
- MCA depth: 2048 channels (8192 on request)
- ADC depth: 12 bits
- ADC sampling frequency: 62.5 MHz
- Digital signal processing
- Embedded PC
- Low power ARM based CPU
- Linux based operative system
- 8 GB internal data storage
- Software
- Integrated web interface
- Local database and data repository on 8 GB non volatile memory
- Hourly and daily automatically generated reports
- Adjustable integration time: 5, 10, 20, 30 min
- Spectrum stabilization with natural background isotopes
- Configurable isotope library
- Adjustable isotope related alarms
- Unattended operation for more than 1 year
- Power supply
- Power consumption: < 4 W
- Voltage: 5 ÷ 12 VDC
- Power connector protection IP68
- Physical dimensions and weight
- Length: 91.5 cm
- Diameter: 0 ÷ 17.0 cm
- Weight: up to 8 kg
- Environmental
- Temperature range -40 ÷ 60 °C
- Protection level IP68 outdoor extreme weather conditions
- Relative humidity: 100% (water proof)
Compare
Compare with GAMON Platform.
Loading...
Videos
GAMON-S - Gamma radiation spectroscopy system for real-time radiation monitor
Accessories

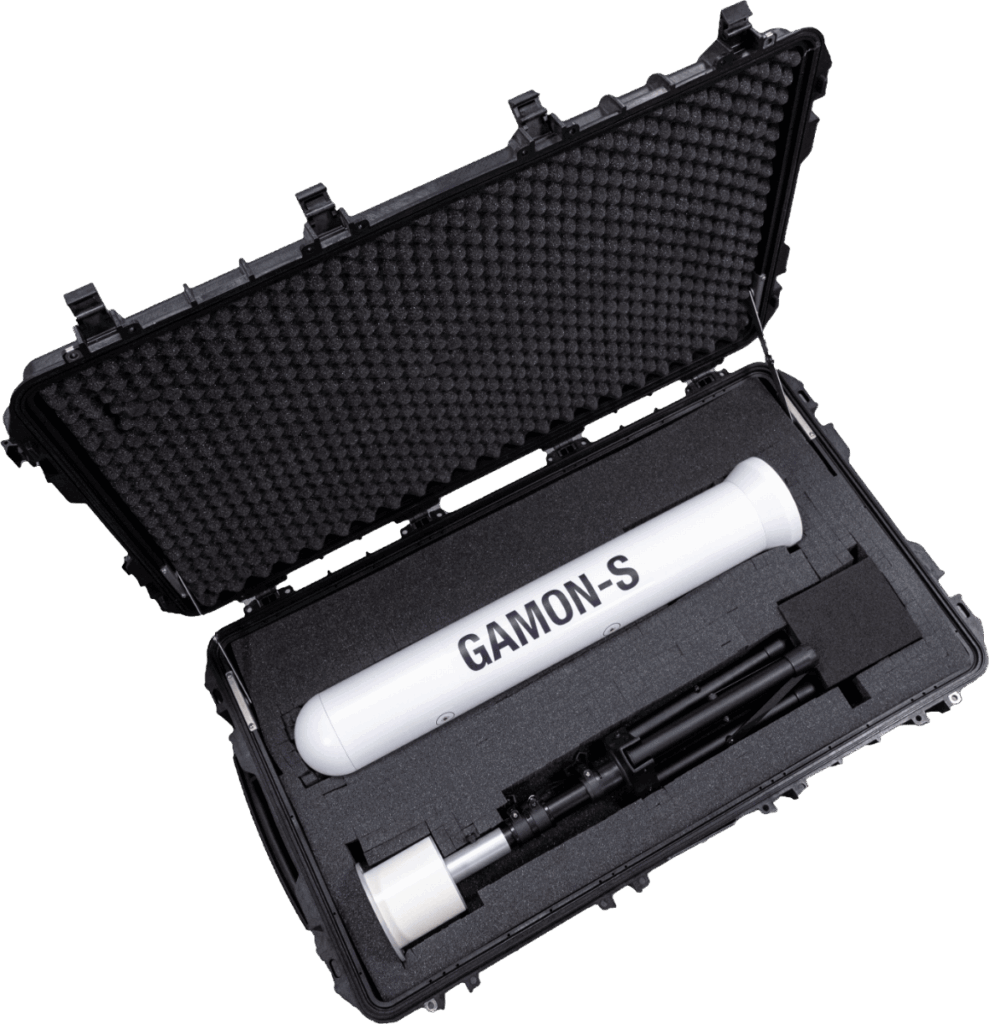

- Tripod Stand
- Single indoor tripod valid for RadHand-600, Gamon S and Gamon D
Ordering Options
| Code | Description |
|---|---|
| WSGSPELBPXAA | GAMON-S LaBr 1,5"x1,5" Dose Rate 10 nSv/h - 10 Sv/h RoHS |
| WSGSPECBPXAA | GAMON-S CeBr 1,5"x1,5" Dose Rate 10 nSv/h - 10 Sv/h RoHS |
| WSGSPECBPXBA | GAMON-S CeBr 2"x2" Dose Rate 10 nSv/h - 10 Sv/h RoHS |
| WSGSPELBPXBA | GAMON-S LaBr 2"x2" Dose Rate 10 nSv/h - 10 Sv/h RoHS |
| WSGSPENAPXCA | GAMON-S NaI 3"x3" Dose Rate 10 nSv/h - 10 Sv/h RoHS |
| WSGSPENAPXBA | GAMON-S NaI 2"x2" Dose Rate 10 nSv/h - 10 Sv/h RoHS |
Related Products

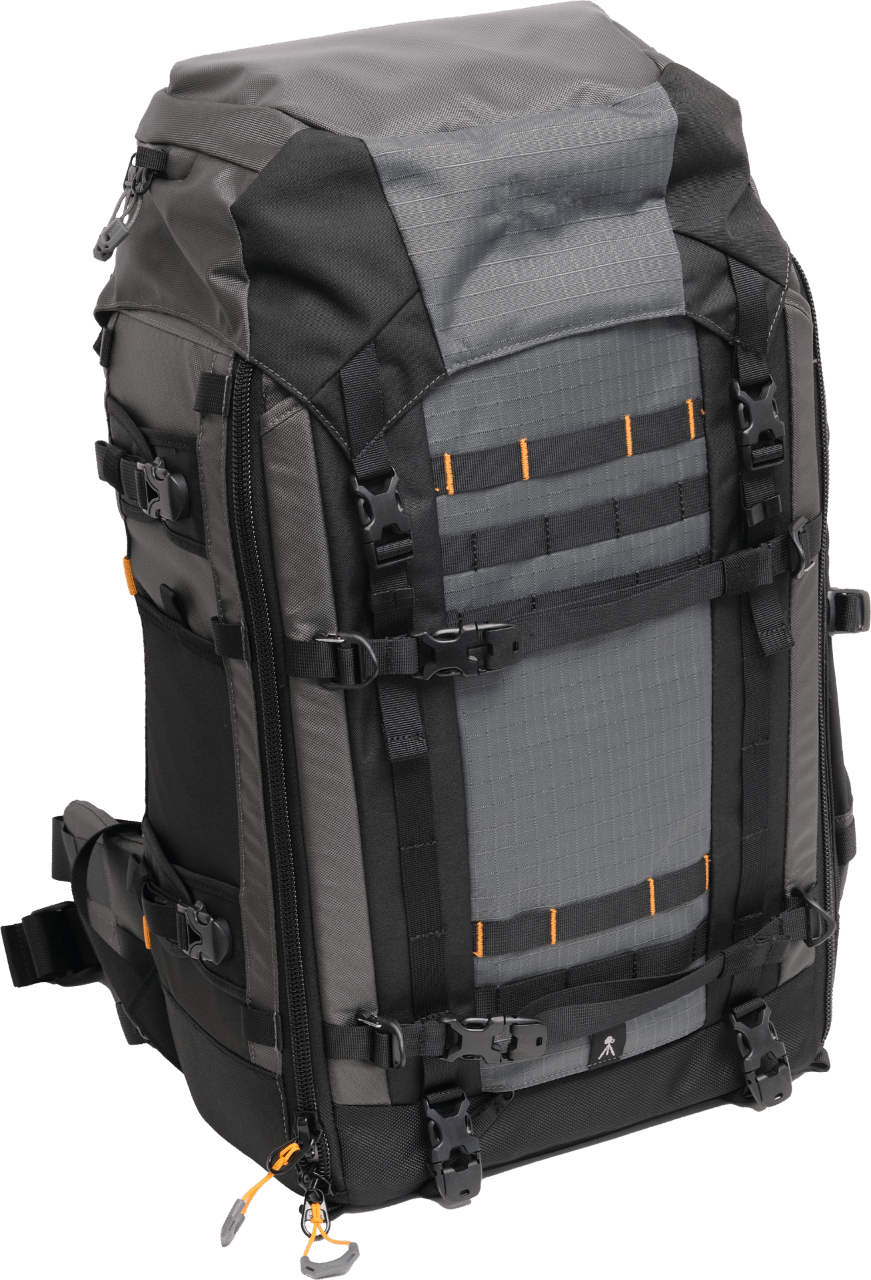

GAMON-Pack
