GAMON-Drone

New

Dose and Spectrometric Detection Unit, Light Weight

Features

  • Mobile system for radiological search and monitoring purposes
  • Automatic radionuclides analysis with configurable library
  • Embedded gamma dose rate and spectrometry measurement units
  • Programmable isotope based and dose rate alarms
  • Web page for an easy system configuration and visualization of the measurements
  • Georeferenced and real time data visualized by the operator
  • Compatible with alternative scintillation detectors, e.g. NAIL™ and LaBr3(Ce)
  • Internal database for an easy handling of the acquired data
  • Count rate alarm and alarm reporting to the operator directly on the notebook
  • Embedded Gain stabilization of the detector
  • Digital I/O LVTTL available (optional)
  • Ethernet, USB communication interface (WiFi optional)
  • Embedded low power CPU

Overview

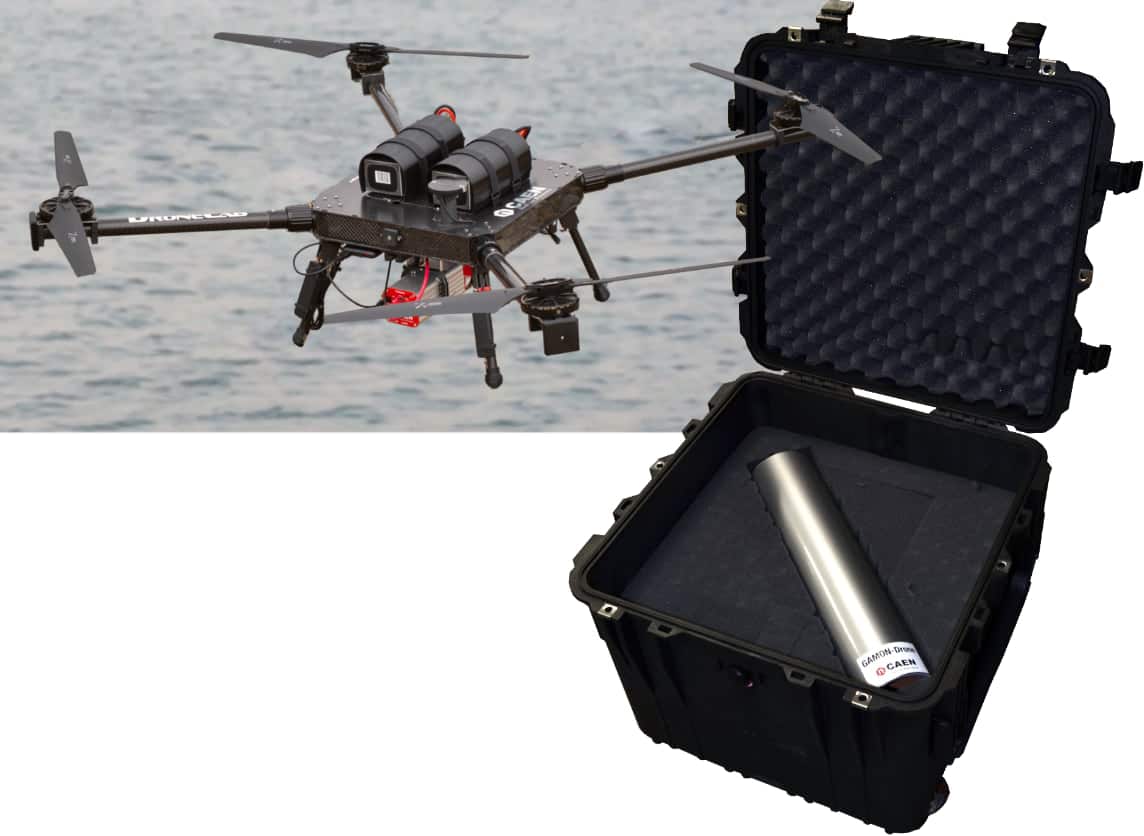

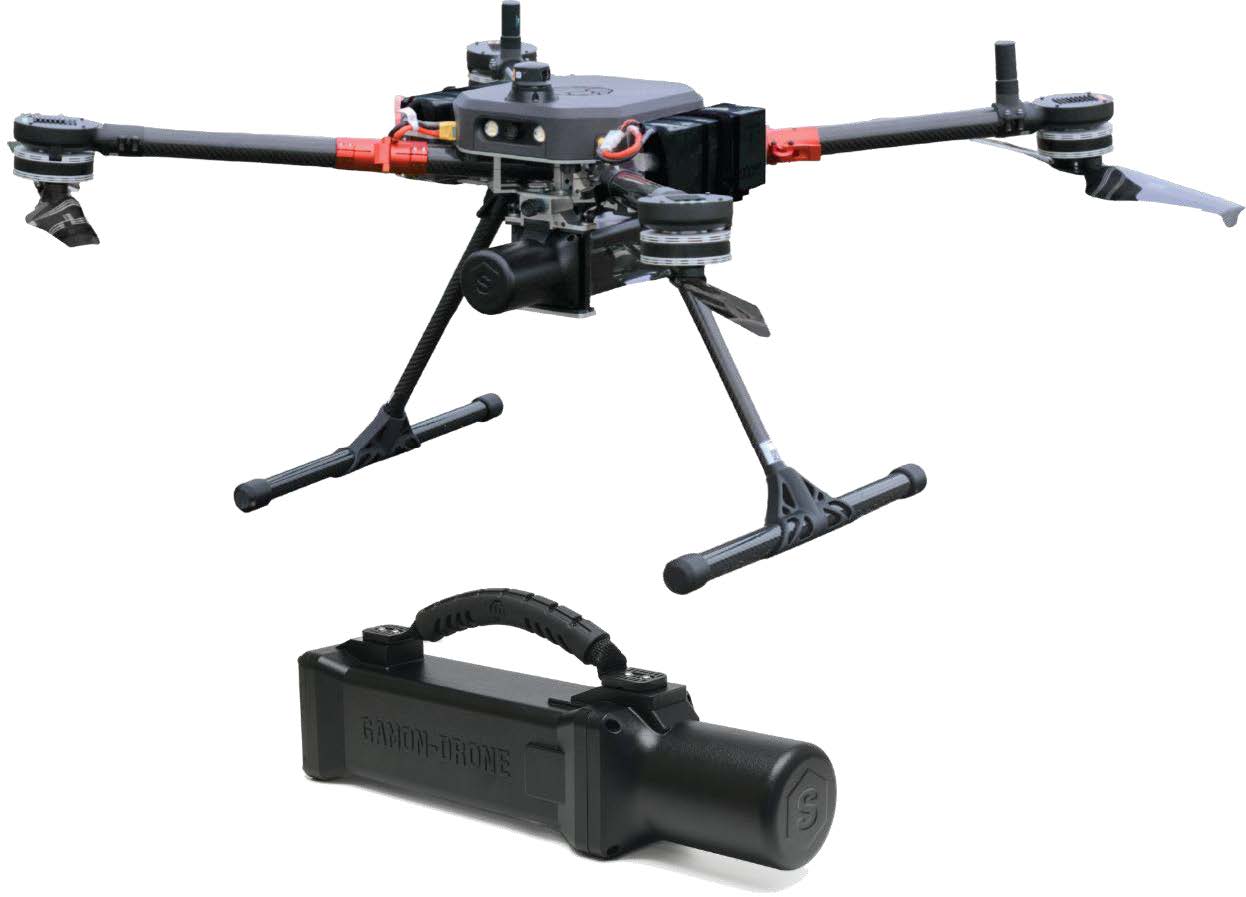

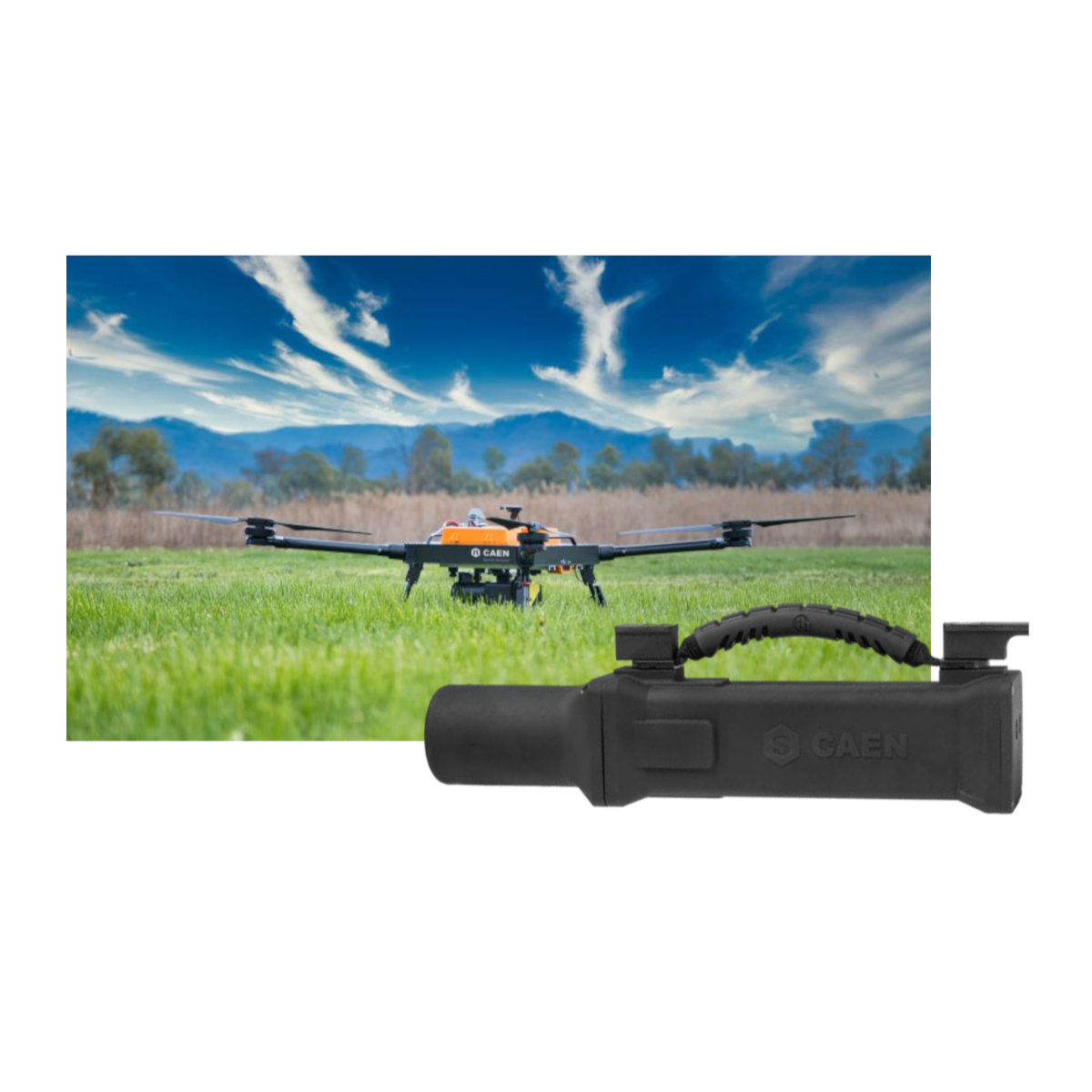

GAMON-Drone is a compact and light weight spectrometer specifically designed for UAV environmental radiation protection, inspection, and site remediation after the dispersion of radiological or nuclear material. The system can be used as a measurement device for first responders for the exploration of hazardous areas.

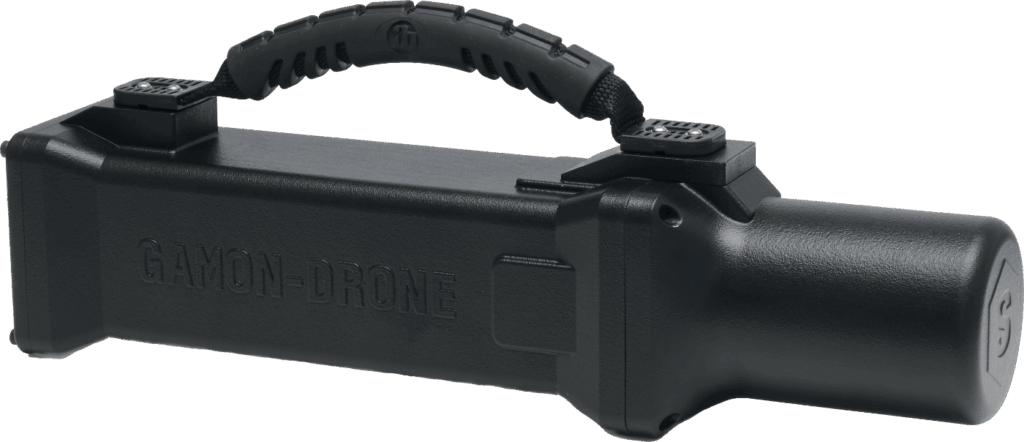

GAMON-Drone system is designed to offer the best combination of portability, low power consumption and performance. The unit is assembled in a lightweight enclosure that contains both the Scintillator Detector and the Digital Signal Processing Electronics.

GAMON-Drone can identify gamma-emitting radionuclides and differentiate them based on the category they belong to, distinguishing between NORM, medical and industrial.
GAMON-Drone runs spectrum analysis algorithms that can perform simultaneous identification of multiple radiological sources and provides quantitative measurements in terms of dose and activity per radionuclide with its built-in detector efficiency calibration.
The user can select the isotopes to be identified from the library and adjust the thresholds of the isotope related alarms. The spectrum stabilization can be obtained with the identification of natural occurring radionuclides as the 40K.
The gamma spectrometer is composed by an inorganic scintillation crystal. The system integrates inorganic scintillator with of configurable volume. Standard system versions integrate NaI(Tl) 2”x2”, CeBr3 1.5”x1.5” or CeBr3 2”x2”. The standard versions scintillators are the best compromise between resolution and low background measurements. LaBr3(Ce) can be integrated on request. Optional NaIL® detector can be integrated, which gives the capability of detecting neutrons.
Signals from scintillation detector is pre-amplified and the pulse is digitized by a 12 bit 62.5 MHz fADC. Digital signal shaping and pulse height analysis is performed by a digital MCA with 2048 channels.
The detector is configured to collect gamma interactions in the energy range from 30 keV to 3 MeV. It provides statistically accurate dose rate measurements starting from 1 nSv/h.
GAMON-Drone is provided with Ethernet and USB interfaces through waterproof connectors. It connects to its ground control station with wired interface as a portable spectrometer and can alternatively switch seamless to the wireless radio communication link of the provided drone.

The GAMON-Drone integrates an ARM based CPU that analyses data and stores the measures in an internal non-volatile memory of 8 GB. The GAMON- Drone is provided with an IP65 tablet that act as its ground control unit and is compliant with MIL-810G standards for drop and vibration resistance.
Alternative custom defined ground control units can be provided on request. The ground control unit runs a web interface to allow the user to easily configure the data acquisition and the isotopic analysis.

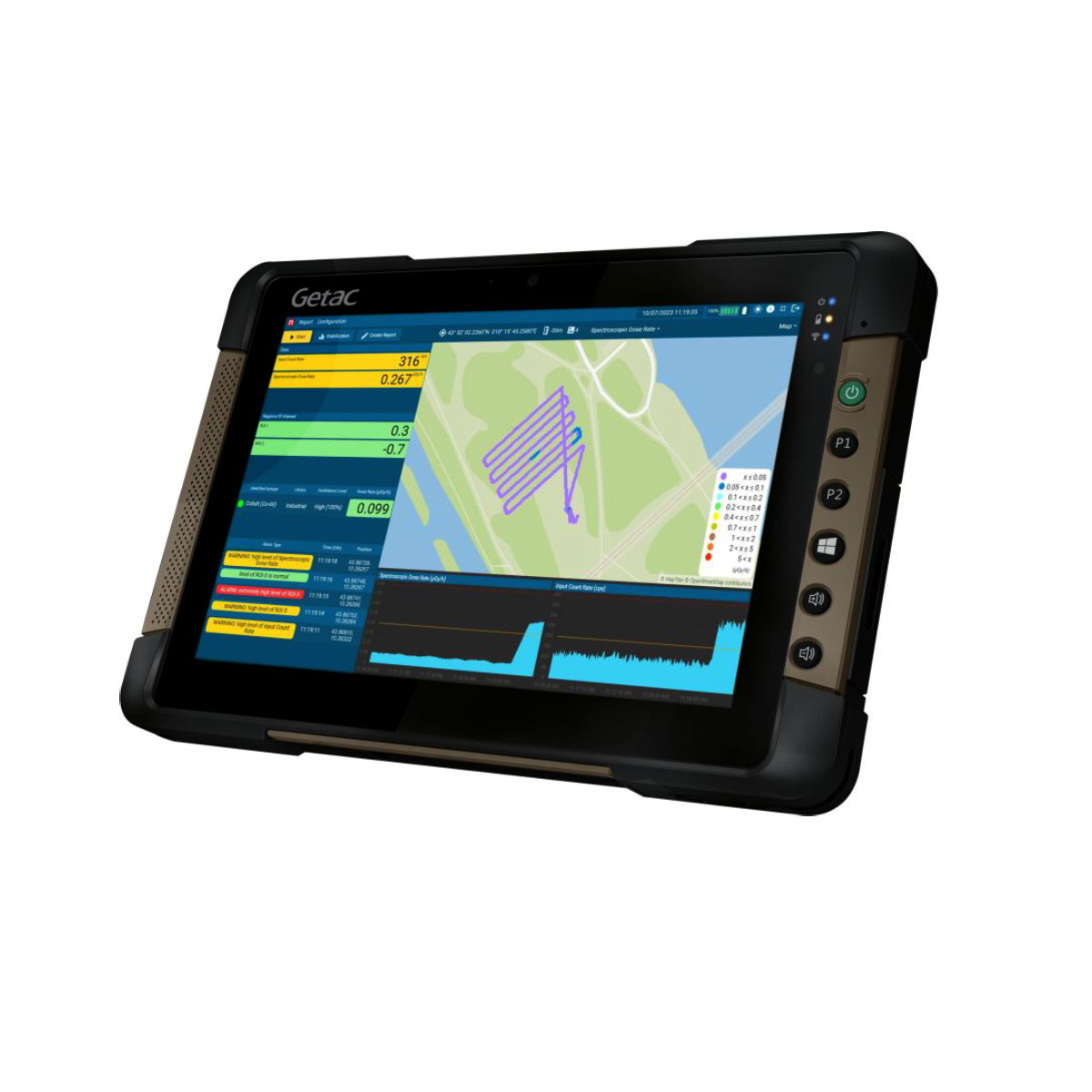

The GUI of the software is a web interface reachable by a common browser. No apps or software installation is needed. Security level of the web interface can

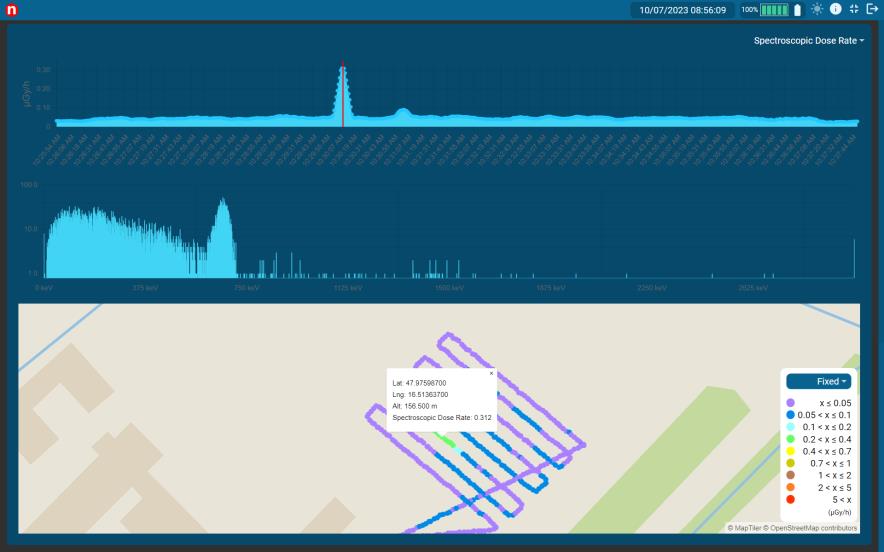

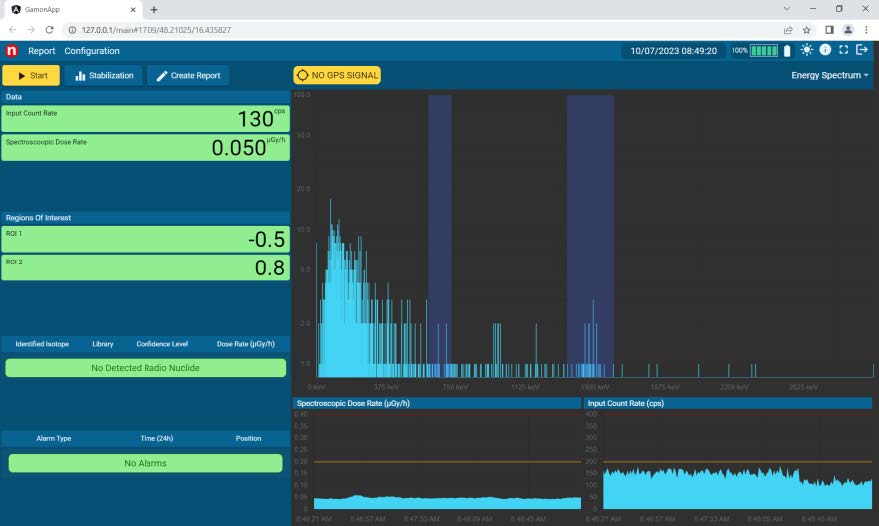

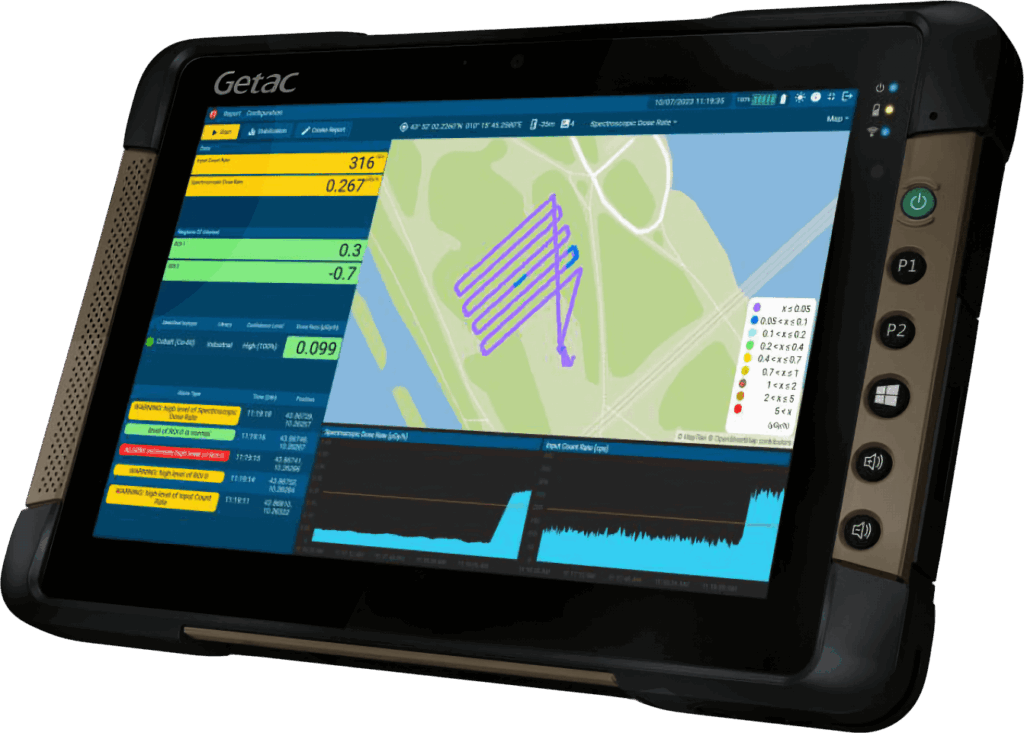

be configured by the user to avoid unauthorized setting changes. The web interface shows the real time counting rate of the scintillator, the real time ambient dose equivalent rate, and the live spectrum by the scintillator is available on the dashboard. Counting and dosimetry trend of the last ten minutes are displayed in flow chart to help the user in the search of radiological dispersal device. All measurements are georeferenced, and it is possible to display trend of the bcount rate and set the alarms in the provided web interface. The GAMON-Drone integrates a GPS sensor in the surface unit to provide georeferenced display of the measured quantities. Values are presented in a dynamic map both in real time acquisition and in the reports that are automatically generated.

Technical Specifications

Spectrometer dimensions and weight
  •  1.5”x1.5” and 2”x2” NaI(Tl)
    o Energy range: 40 – 3000 keV
    o Energy resolution: FWHM @ 662 keV: 7.0%
  • 1.5”x1.5” CeBr3
    o Energy range: 40 – 3000 keV
    o Energy resolution: FWHM @ 662 keV: 4.0%
  • Other scintillators size and types on reques
Spectrometer dimensions and weight
  • Diameter: 15 cm
  • Height: 45 cm
  • Weight: from 2 to 2.2 Kg
Communication Interfaces
  • On ground Ethernet RJ45
  • Drone radio communication link
  • Wi-Fi through remote
Environmental
  • Temperature range -20 ÷ 50 °C
Sensors
  • Internal temperature sensor for stabilization
  • Integrated backup GPS (drone GPS used in standard data acquisition)
Data acquisition
  • MCA depth: 2048 channels
  • Digital signal processing
Embedded PC
  • Low power ARM based CPU
  • Linux based operative system
  • 8 GB internal data storage
Software
  • Integrated web interface
  • Local database and data repository
  • Nuclide analysis
  • Configurable spectrum stabilization with natural background
  • Configurable isotope library
  • Adjustable isotope related alarms
  • Installed and stand-alone GIS map server
Power Supply
  • Power consumption: 5 W, 12 V
  • Voltage: 5 ÷ 12 VDC
  • Powered from the UAV
Standard Military Tablet 10.1''
  • IP65
  • Temperature range -10 ÷ 50 °C (battery mode)
  • Drop test resistance up to 1.2 m
  • MIL-STD-810G shock, vibration and drop resistant
Ordering options WSGDRONABAAA, WSGDROCBAAAA and WSGDROCBAAAA include:
  • GAMON-Drone spectrometer
  • Military Tablet 10.1”
  • Preinstalled GIS map for 1 selected region
  • Other Optional Tablets or Laptops under request

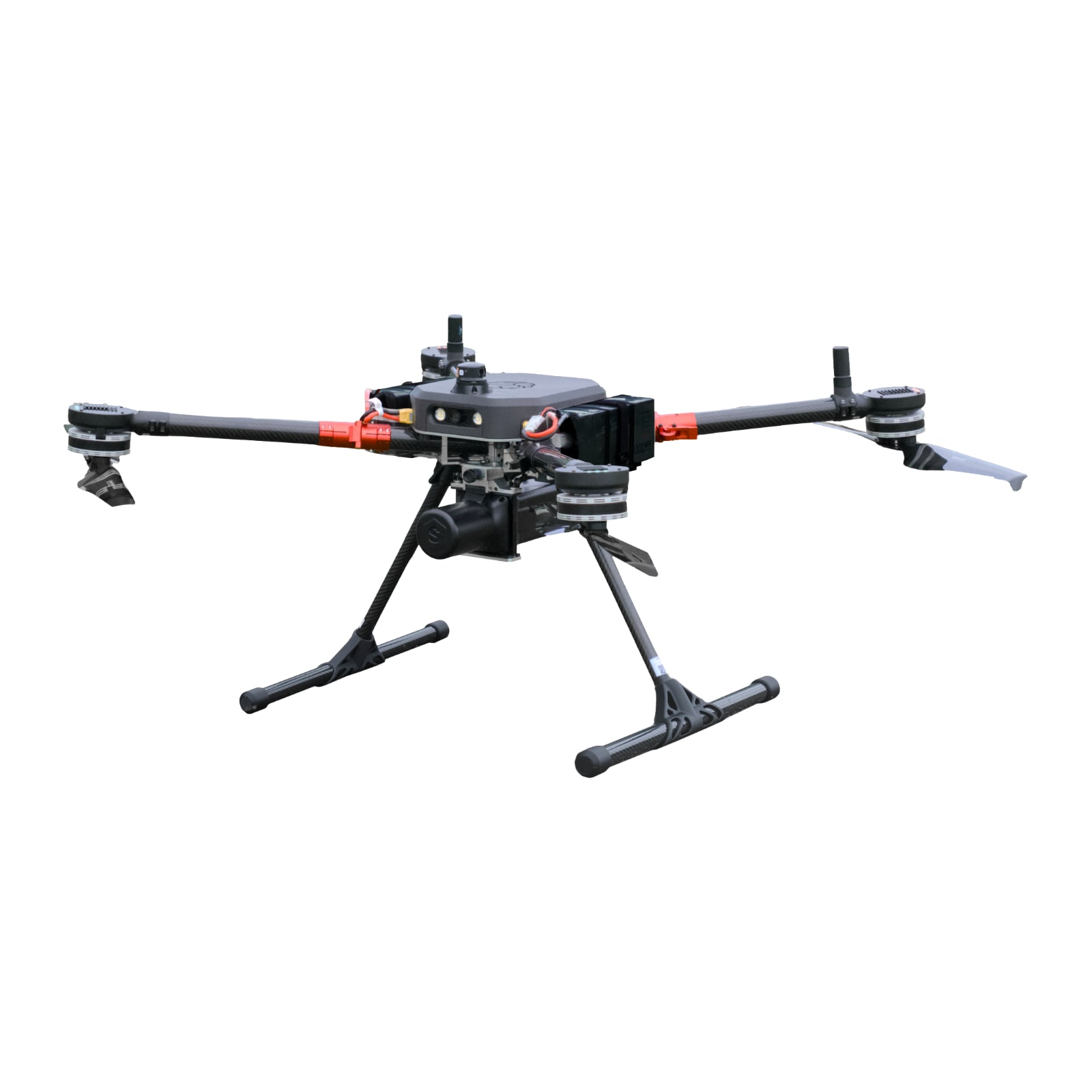

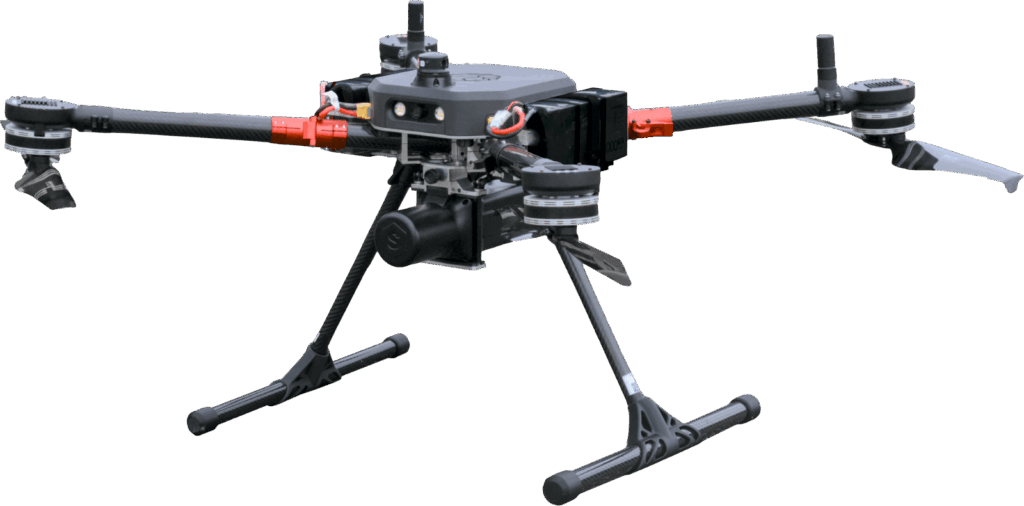

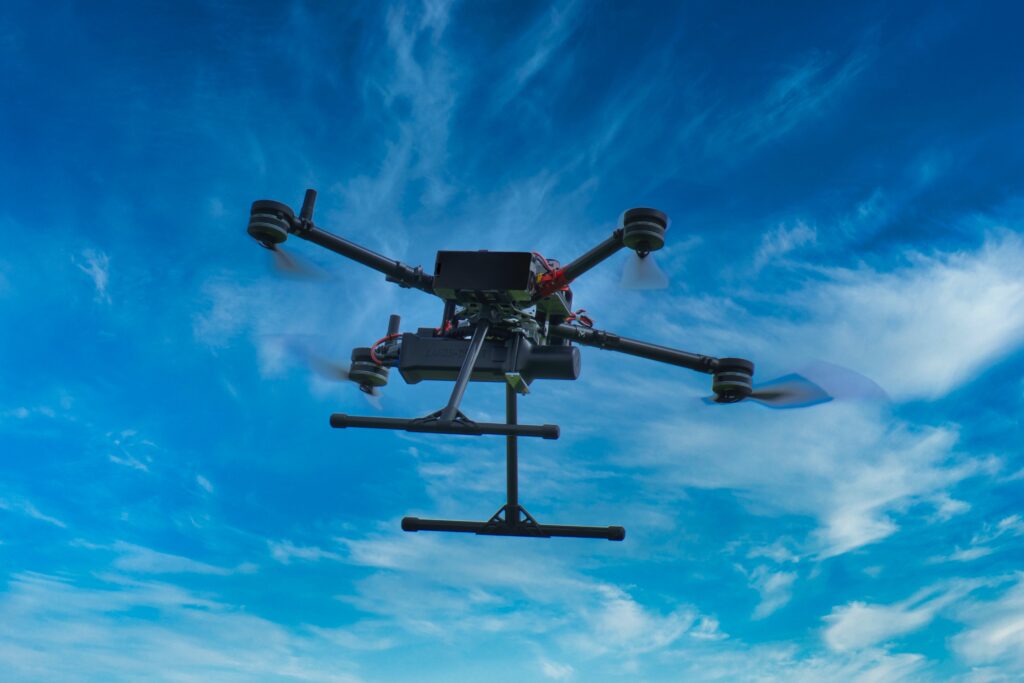

UAV Specification
  • EASA Class C6 certified.
  • Quadcopter configuration
  • Completely foldable,
  • Frontal flight survey camera
  • Optional 3D Gimbal with High resolution camera for photogrammetry
  • High efficiency propellers 28.2″x9.2″ carbon fiber foldable
  • Maximum power: 7.2 kW
  • Batteries: 48V, 28Ah, LiPo
  • Empty Operating Weight (EOW): 10 kg (including batteries)
  • Diagonal wheelbase (with propellers): 1805 mm
  • Height: 575 mm
UAV Functions
  • Fail-safe mode: this function allows the aircraft to return to the take-off point automatically.
  • Emergency landing: system automatic monitoring of the battery voltage and activation of the controlled descent in case low voltage
  • Collision Avoidance System: with a 2D Lidar sensor with 320° of angular range
    Flight Termination System: dedicated remote control independent from the primary command to be activated in case of EASA Class C6 drone loss of contro
