GAMON-D

New

Gamma Dose Rate Monitoring System for Real-Time Radiation Monitor

Features

  • Gamma dose rate monitoring system embedding two energy compensated Geiger–Mueller (GM) detectors

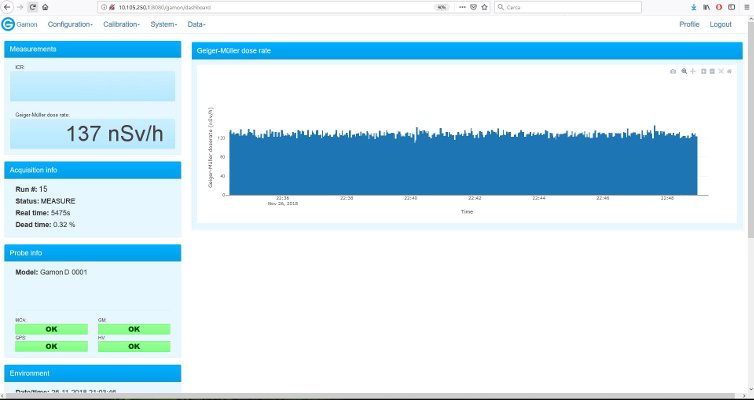

  • Onboard web interface for easy configuration
  • Wide measurement range from 10 nSv/h to 10 Sv/h with subtraction of intrinsic background
  • Automatic switching between GM tubes based on the acquired count level
  • Moving average algorithm for instantaneous dose rate measurement
  • Big onboard data storage for long autonomous data taking
  • Designed for operating outdoor in extreme weather conditions from -40 to +60 °C
  • Robust case, designed to guarantee IP68, including the power and the communication connectors
  • Design for easy wall and pole mounting
  • Wired and Wireless communication interfaces: USB 2.0, Ethernet, WiFi and 3G/4G LTE
  • Configurable list of communication interfaces for selecting primary and backup interfaces

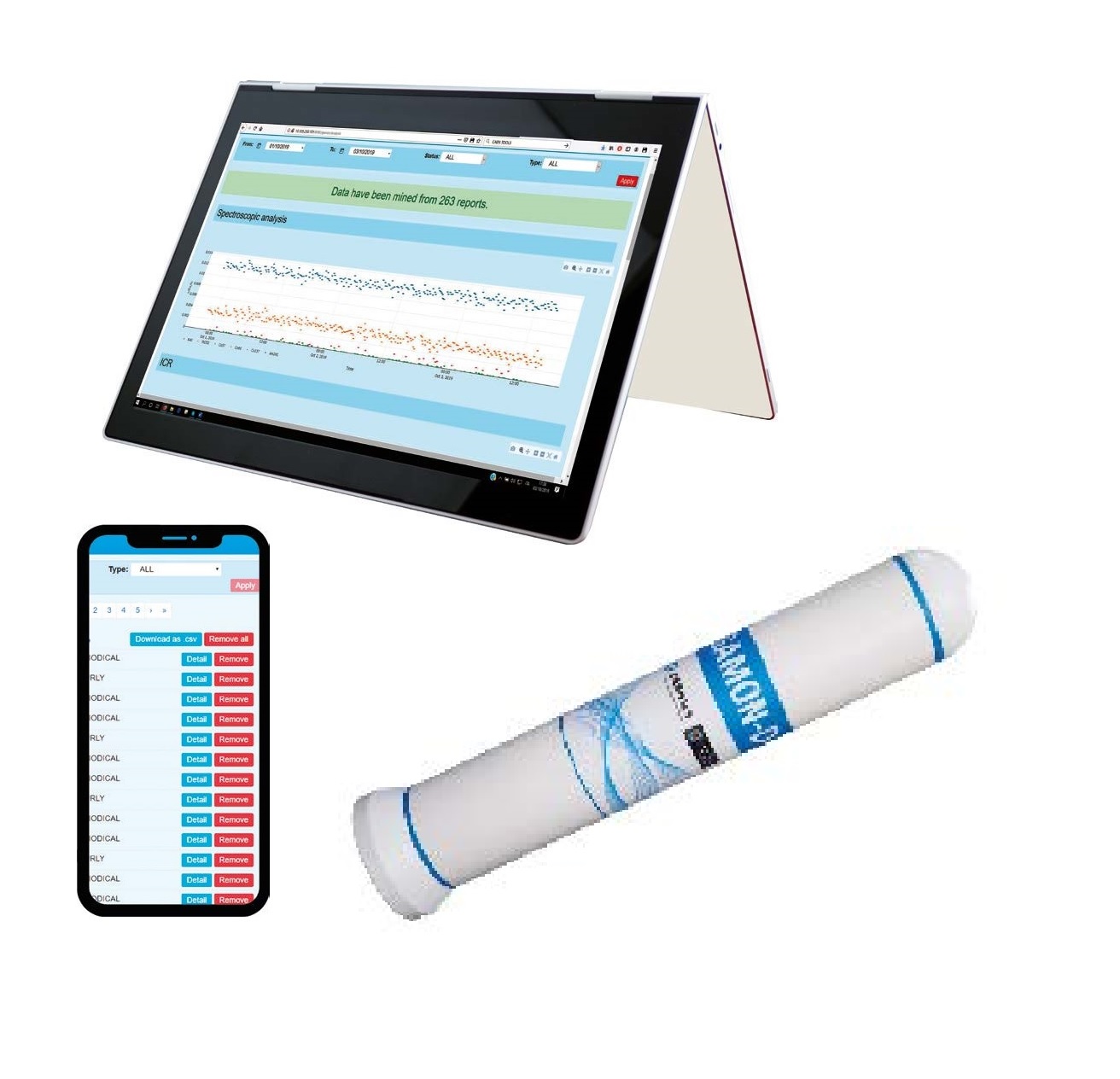

  • Quick and easy to install and commission thanks to onboard web graphical interface
  • Autonomous delivery of email and SMS on alarm to a configurable list of recipients

Overview

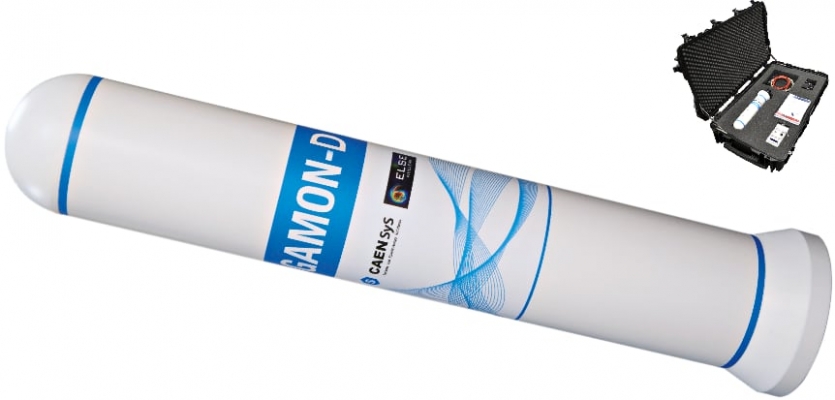

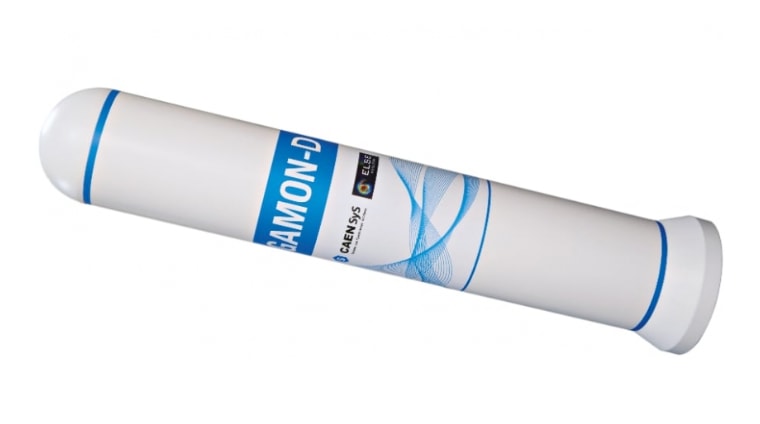

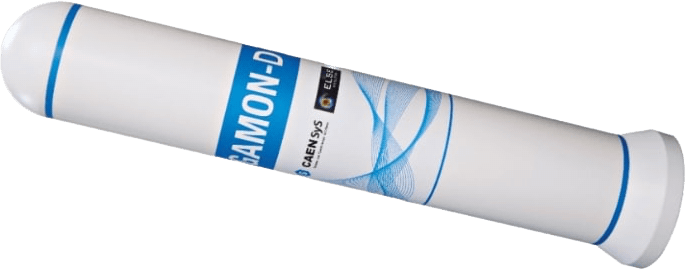

The GAMON-D is a gamma dose rate monitoring system series, designed for outdoor and indoor online radiation monitoring, for early environmental warning and emergency response.
The GAMON-D can operate in a wide range of scenarios, such as permanent ring monitoring and in-motion monitoring stations. It can be mounted on a tripod to be easily repositioned for typical security or emergency response applications while the GPS monitors the current location.
The GAMON-D embeds two energy compensated Geiger–Mueller (GM) detectors to provide a wide detection range for ambient equivalent dose rate H*(10). The high-volume GM is used for low dose rate measurement and can detect small changes in the natural background even in short acquisition cycles.
The control of the two detectors is performed by the internal electronics, which continuously monitors the count rate. Customized extended range dose rate can be provided on request, from 10 nSv/h to 10 Sv/h. It can operate in a wide temperature range from -40 to 60 °C and in adverse weather conditions as it is protected from rain and humidity. CAEN offers both the GAMON-D as a stand alone unit for easy integration or a more complete station system including mounting inox-steel structure with rain-sensor, back up batteries, electric cabinet, solar panel and mobile communications.

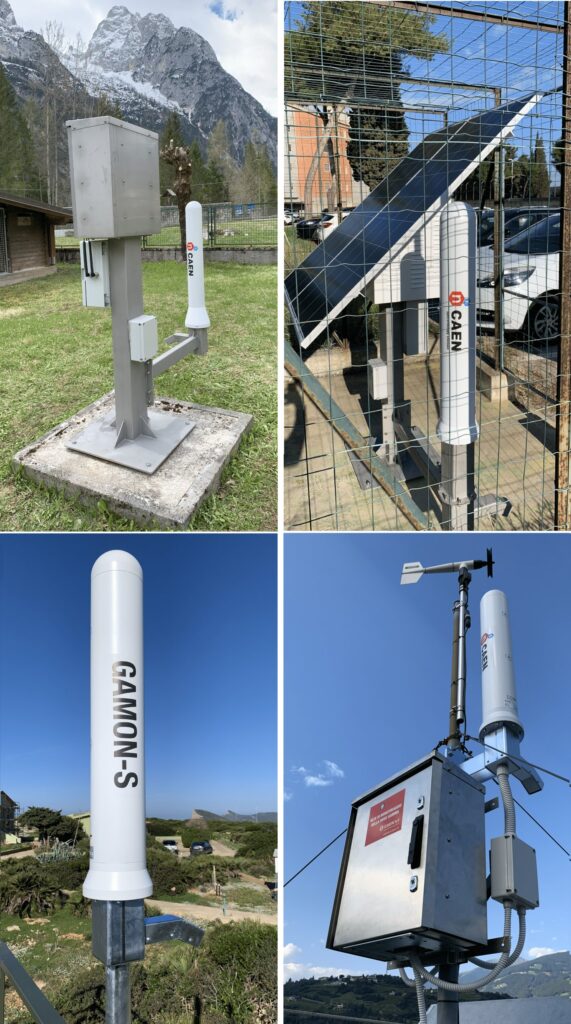

Field Installations

  • Stand Installation
  • Roof installation
  • Shelter Installation
  • Pole Installation
  • Solar Panel

Technical Specifications

Geiger-Mueller
  • Two energy compensated GeigerMueller tubes
  • Energy range: 50 keV ÷ 2 MeV
  • Dose rate range: 10 nSv/h ÷ 10 Sv/h
  • Energy response (137Cs): 10 / +20 %, from 50 to 1300 keV
  • Linearity: < 10% from 100 nSv/h to 1 Sv/h
Sensors
  • I/Os for external sensors or devices
  • Rain sensor on request, on stations
  • GPS
Wired Communication interfaces
  • Ethernet RJ45
  • USB 2.0 port
  • Communication protocol TCP/IP
  • Connector protection level IP68
Wireless communication interfaces
  • 3G/4G LTE
  • WiFi
  • Other radio links can be provided on request
Embedded PC
  • Low power ARM based CPU
  • Linux based operative system
  • 8 GB internal data storage
Software

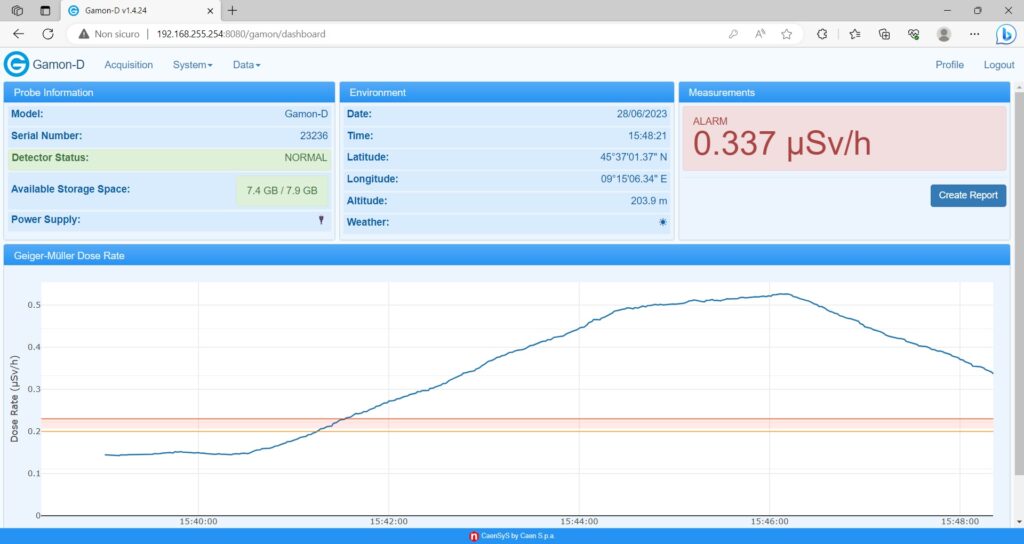

  • Integrated web interface
  • Hourly and daily automatically generated reports
  • Alarms based on instantaneous and averaged H*(10) rate rage
  • Unattended operation for more than 1 year
Power Supply
  • Power consumption: < 3.5 W
  • Voltage: 5 ÷ 12 VDC
  • Power connector protection IP68
Physical dimensions and weight
  • Length: 60.3 cm
  • Diameter: 10.0 ÷ 17.2 cm
  • Weight: up to 4 kg
Environmental
  • Temperature range -40 ÷ 60 °C
  • Protection level IP68
  • Relative humidity: 100% (water proof)

Compare

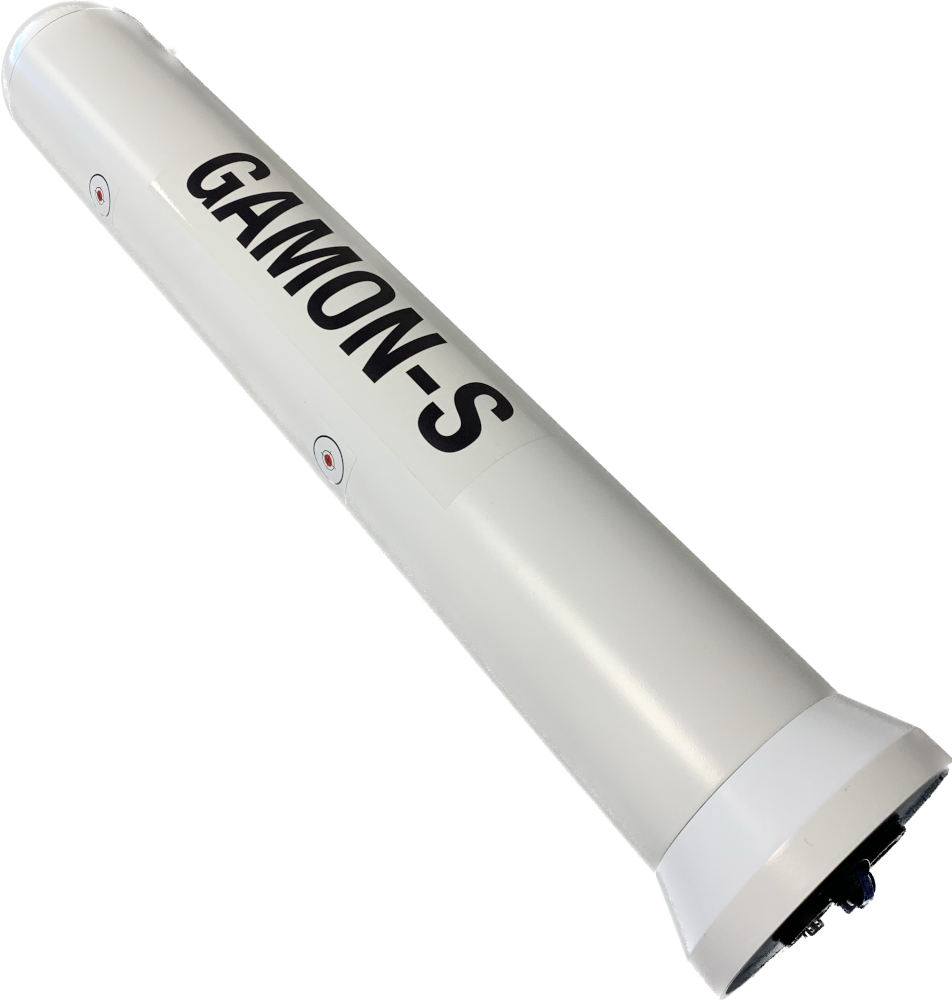

Compare with GAMON Platform.

Loading...

Accessories

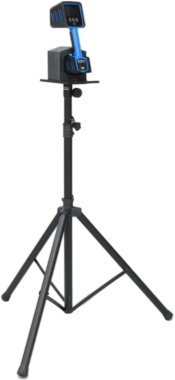

Tripod Stand
Single indoor tripod valid for RadHand-600, Gamon S and Gamon D
Cabinet for fixed gamma monitoring station
Rain Sensor for Gamon

Ordering Options

Code Description
WSGDOSBAAAAA GAMON-D Dose Rate 10nSv/h - 10 Sv/h   RoHS
