DiscoveRAD

New

Radionuclide Identifying Device (RID)

Features

  • Detects and identifies nuclides in mixed, shielded, and heavily masked configurations including Special Nuclear Material
  • Spectra view and analysis with data storage (30 GB) for reach back
  • Small, lightweight (< 1,25 Kg, <2,7 lbs)
  • Underwater operation to 10 meters (IP68)
  • User Interface with day and night view
  • High accuracy dose measurement
  • Finder mode with directionality
  • Spectrometry at up to 1 million cps between 10 keV to 10 MeV
  • Replaceable batteries
  • Three buttons operation
  • Multiple modes of configuration
  • Operation from remote PC with full view of the screens
  • N42.42 data format
  • Superior efficiency with rugged non-hygroscopic BGO detector

Overview

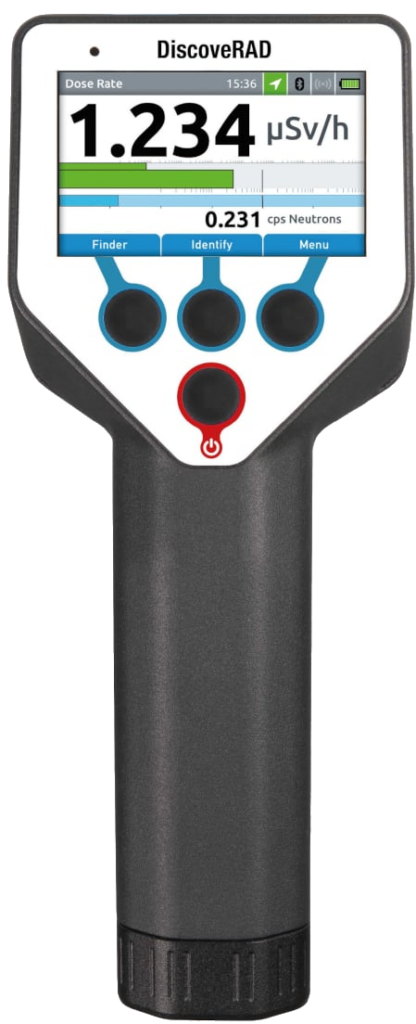

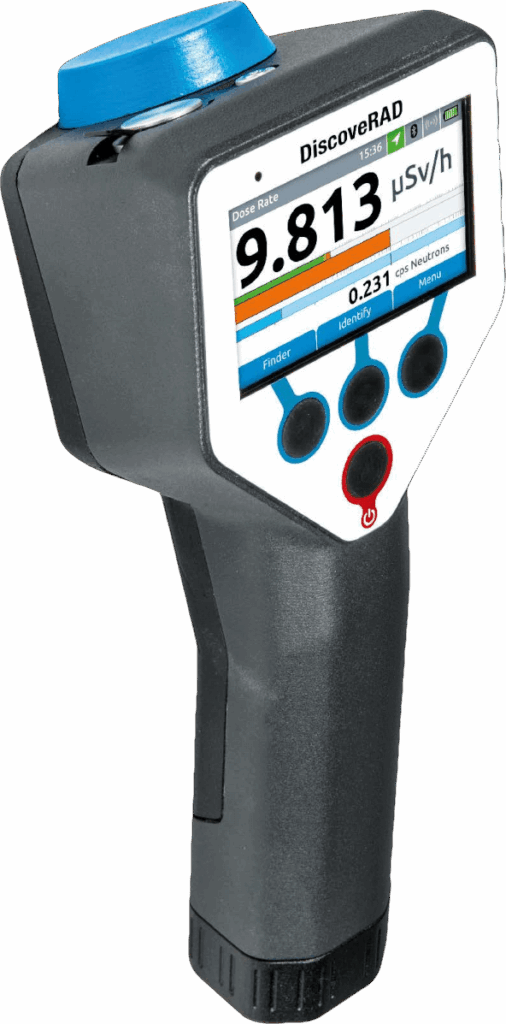

The DiscoveRAD is an ultra-compact, rugged, sensitive Radionuclide Identifying Device (RID). It provides superior usability by offering a wider energy range, higher throughput, and better stability in a wearable handheld. For the first time, a 2”x 1” size BGO detector is combined with high precision, high-speed digital electronics in an ergonomic lightweight enclosure. The novel design features a water-tight aluminium housing and is small enough to be worn on a belt.

Law enforcement, customs, and other agencies are using RIDs as part of a national strategy to stop the illicit trafficking of radioactive material. When radiation sources are detected by screening devices such as radiation portal monitors or radiation pagers, RIDs are used to analyse the nature of the radioactive source and determine if it presents a high-level threat. Radiological emergency personnel, firefighters, and other responders also use RIDs for situational awareness during radiological emergencies. DiscoveRAD is a portable RID with an extensive radionuclide library, fully compliant with ANSI standards for the RID category. DiscoveRAD can continuously scan and identify radiological threats in real time even in mixed source environments with a high level of confidence. Detects and identifies nuclides in mixed, shielded and heavily masked configurations including Special Nuclear Material.

All measurements are saved on the instrument (25 GB user storage capacity) and can easily be transferred without special software.
Its multiple interfaces and the built-in web interface allow easy and flexible reach-back operation. The interface also provides for secure remote maintenance and remote operation of the instrument.

blank    blank

Technical Specifications

Scintillation Detector
  • One crystal for detection of both gamma and neutron
  • 51 x 25 mm (2“x1“) BGO (Bi4Ge3O12) detector
Radiation Measurement Performances
  • 70 Nuclides (exceeding IEC 62755, ANSI 42.34)
  • Operative in less than one minute
  • Identification of 1 µCi of Cs-137 in 13s
  • Real-time linearization of gamma energy
Gamma
  • Energy range
    • 10 keV ÷ 100 MeV (Gamma and X-rays)
    • 10 MeVee– 1000 MeVee (cosmic radiation, muons, charged particles)
  • Maximum input count rate in id mode: 1 million cps (Cs-137)
  • Gamma sensitivity: 1850 cps/µSv/h (Cs-137)
  • FWHM @662 keV (Cs-137): 9.0 ±1.5 %
Neutron
  • According to ANSI N42.34
  • Sensitivity: 5 cps/nv
Dose-Rate range (Cs-137)
  • Dose rate range: 10 nSv/h – 10 mSv/h (1 μrem/h – 1 rem/h) ±30 %
  • Dose rate range ID mode: 10 nSv/h – 200 μSv/h (1 μrem/h – 20 mrem/h)
  • Dose rate overload range: 0.2 mSv/h – 500 mSv/h (0.02 rem/h – 50 rem/h)
Sensors
  • GPS: switchable 72 channel M8 engine (Navstar, Galileo, Glonass, Beidou)
Communication interfaces
  • USB-C power and data port
  • Wi-Fi access point 2,4 GHz 802.11 g, encryption WPA-PSK AES
  • Bluetooth LE for connection to the Mobile App
Data acquisition
  • MCA depth: 1024 channels
Physical
  • Dimensions: 235 x 88 x 92 mm / (9.3” x 3.5” x 3.6”)
  • Weight: 1250 g / (2.7 lbs)
  • Housing material: aluminum
Operating condition
  • Protection rating: IP68 according to IEC 60529 10 m (0.4″) 30 min submergible
  • Operating/storage temperature: -20 °C to 50 °C (-4 °F to 122 °F)
  • Operating humidity: up to 93 % at 40 °C (104 °F) non-condensing
  • Charging temperature: 0 °C to 40 °C (+32 °F to 104 °F)
Software
  • User-interface update frequency is 0.5 s
  • Operative modes: Dose rate, Survey, Easy finder (directionality), Identification, expert modes
  • Web server: Web Interface for setup, data download and remote control
  • Data streaming: Supporting Sigma streaming API via BT tethering
  • Data reporting: Supporting Sigma reporting API via BT tethering
  • Session data: Continuously tracking GPS position, dose rate, alarms and identification results
  • Night mode
  • Screen rotation
  • 30 GB internal data storage
Power supply

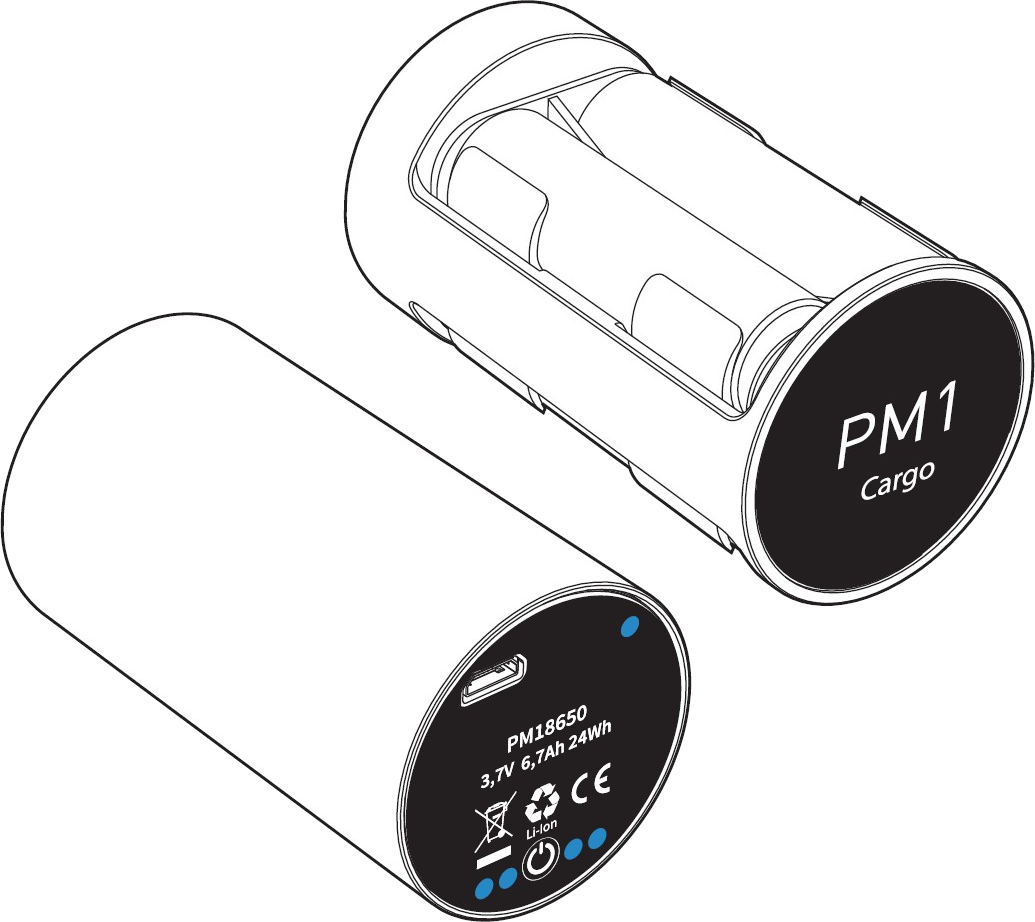

  • Secure rechargeable Li-Ion battery pack (1 + 1 spare included)
  • Run time at 20 °C (68 °F): > 6 h (non-alarm state)
  • Run time at -20 °C (12 °F): > 1 h (non-alarm state)
  • AC/DC included 220/100 V/AC to 5V/DC
Mobile app
  • Remote Operation: Use any mobile device to remote operate the instrument
  • Reach back: functionality (Mail with attached ANSI 42.42 data)
Standard compliance
  • RID: IEC 62327, ANSI N42.34
  • Environmental tests: IEC 62706
  • Data format: ANSI 42.42, IEC 62755
Accessories
  • Rugged carrying case, Micro-B socket USB cable

Ordering Options

Code Description
WSRAD501AAAA DiscoveRAD 501 Radiation Isotope Identifier (BGO 2"x1")   RoHS
WADRADBATTXA Spare battery for DiscoveRAD 501   RoHS
WSRAD501BAAA DiscoveRAD 501 Radiation Isotope Identifier (LaBr 1.5"x1.5")   RoHS
WSRAD501CAAA DiscoveRAD 501 Radiation Isotope Identifier (CLLBC 1.4"x1.5")   RoHS
WSRAD501DAAA DiscoveRAD 501 Radiation Isotope Identifier (NaI(Tl) 2"x2")   RoHS
