CAENSCOPE

Digitizer Software for Signal Inspection and Waveform Recording

Features

  • User friendly single frame GUI with intuitive controls
  • Compatible with CAEN Waveform Digitizers
  • Extended plot and record capability up to 16 simultaneous traces
  • High configuration flexibility:
    • individual channel enable/disable
    • individual channel trigger threshold and DC offset adjustment
    • common trigger among channels
    • external trigger enable/disable
    • auto trigger
  • Multi format (ASCII, binary) data saving
  • Import/Export of recorded waveform and software settings
  • Compliant with Windows and Linux platforms

Overview

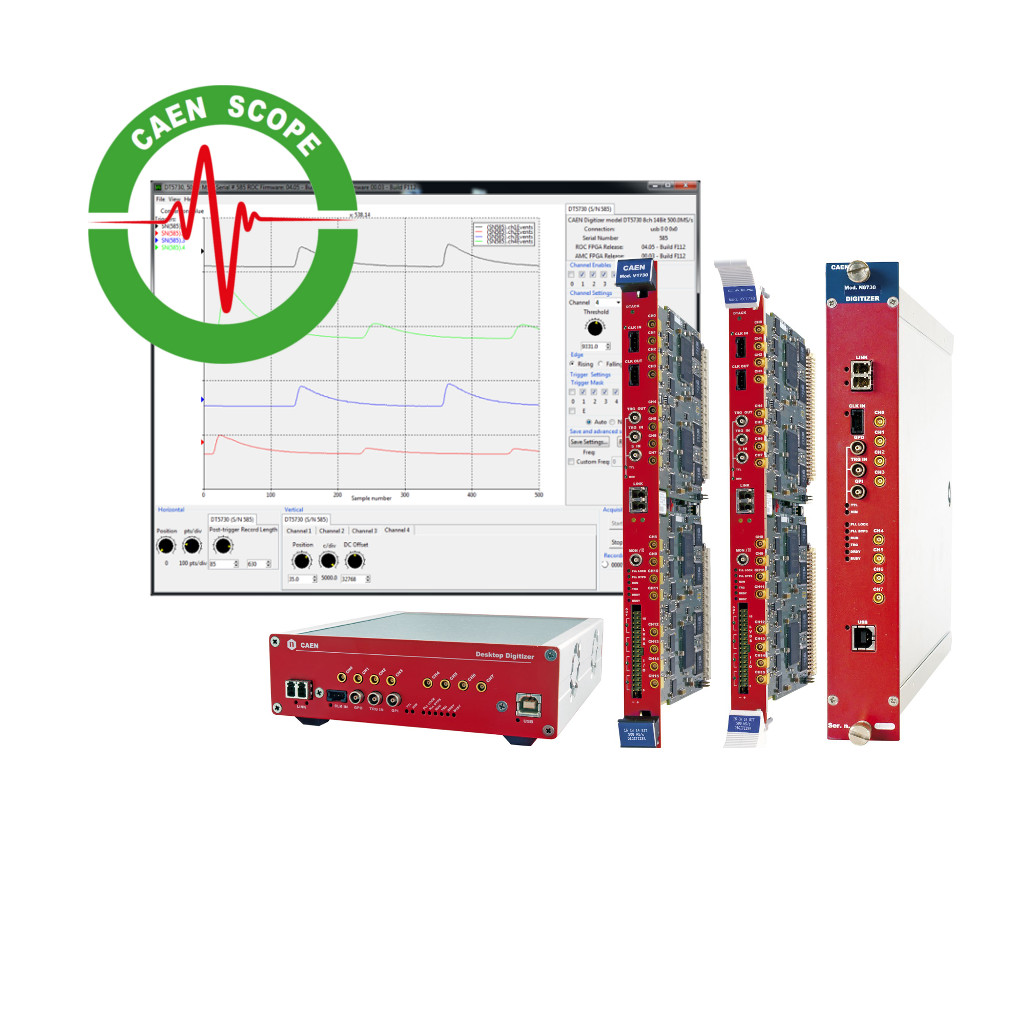

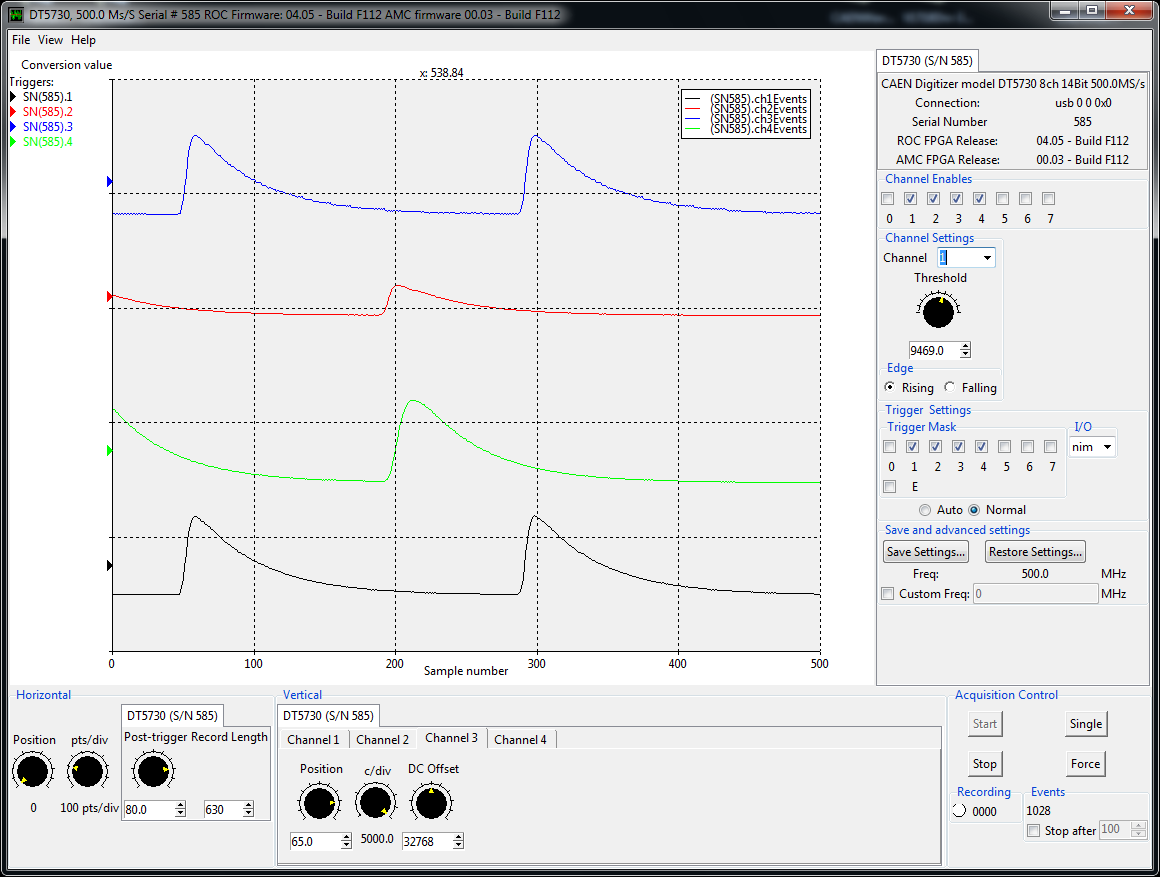

CAENScope is a user friendly software interface to specifically control CAEN digitizer running Waveform Recording Firmware. CAENScope allows the user to easily connect to a single board, retrieve the hardware information, manage the acquisition and data recording. In a single program frame, different parameters can be set for the channels, the trigger (e.g. external, software or channel trigger) and the traces (e.g. vertical and horizontal digital settings, and hardware settings as well). Up to 16 traces can be simultaneously plotted.

A wave recording session can be programmed even by number of events and then saved to files in a Binary (SQLite db) or Text (XML) format. It is possible to load a recorded session and have it on the display with the recording date and the trace from each enabled channel, scrolling it event by event. The user can also export and import the software settings at his convenience.

NOTE: CAENScope does not support DPP firmware.

Supported Operating Systems: Windows, Linux
Language: Tcl/Tk

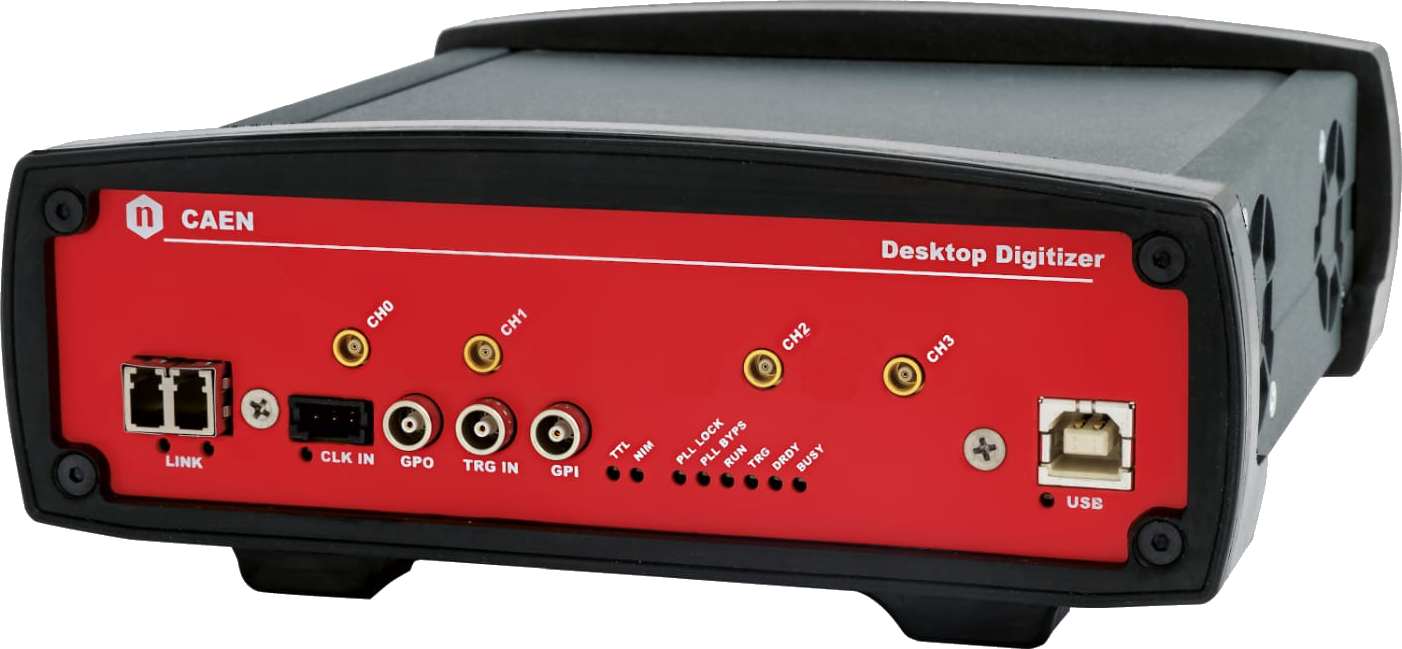

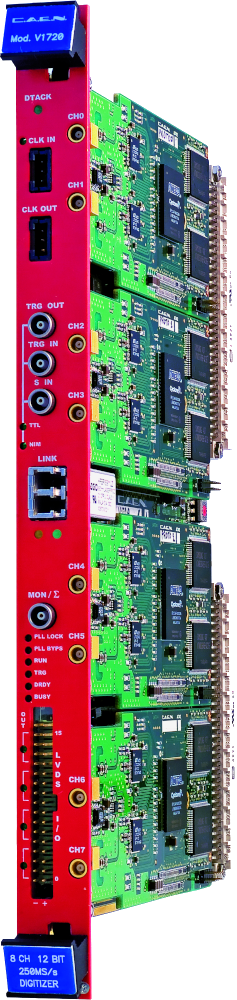

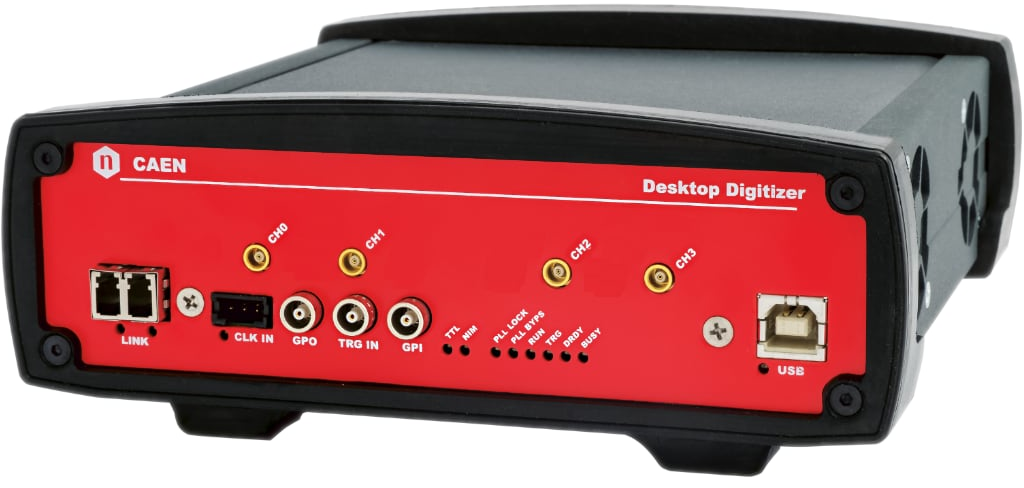

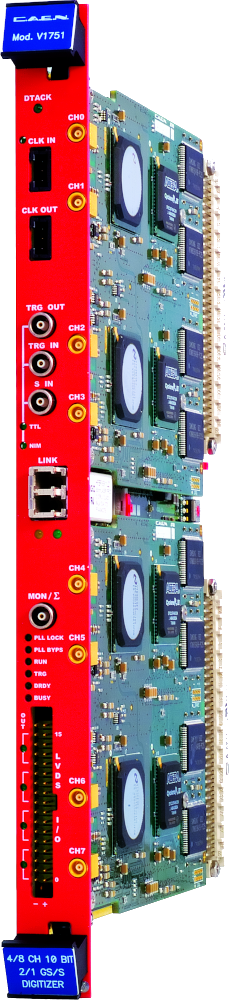

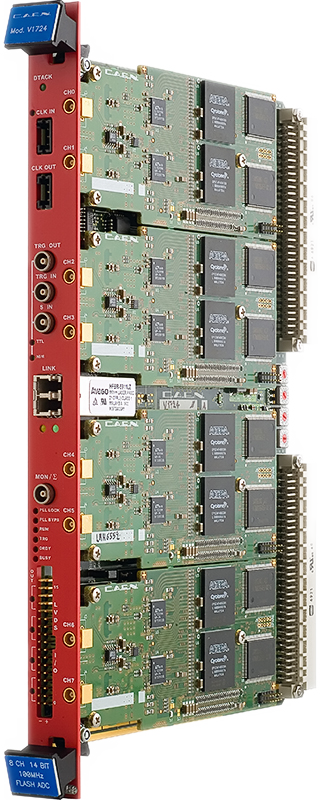

Supported Products(*): 720, 724, 725, 730 and 751 series (VME, NIM and Desktop Digitizers)
Supported Comm. Interface: USB, Optical Link, VME
Additional Software Required: Linux packages:
– sharutils;
– libXft;
– libXss (specifically for Debian derived distributions, e.g. Debian, Ubuntu, etc.);
– libXScrnSaver (specifically for RedHat derived distributions, e.g. RHEL, Fedora, Centos, etc.).

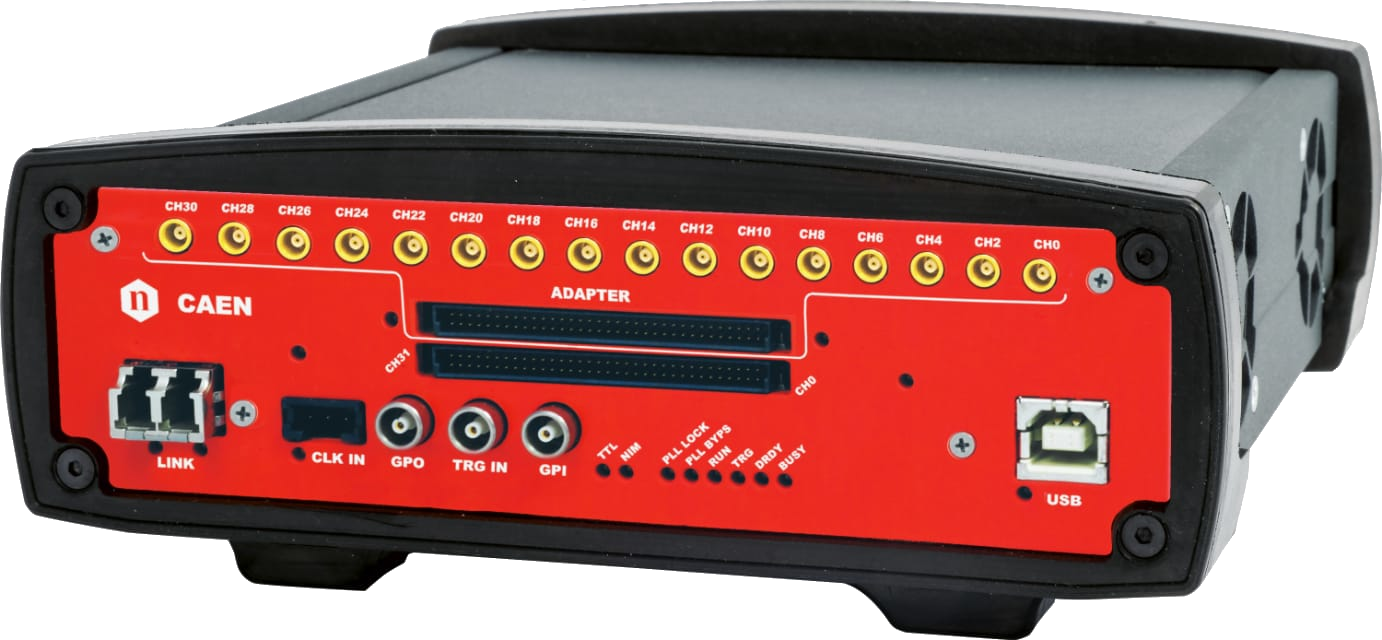

(*) Click here for the currently not supported boards (V1721 and V1731 digitizers, 740 digitizer series).

Compare

Compare with Readout Software.
