Overview

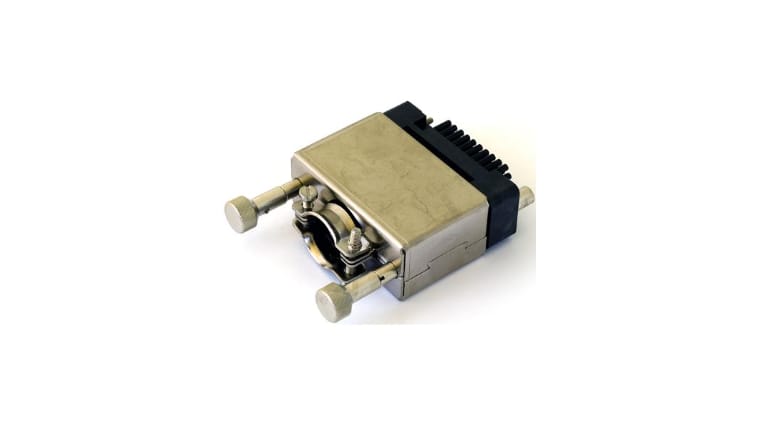

The CAEN Mod. A996 is the 52 Pin HV cable connector designed to be used with the CAEN boards featuring the Multipin connector Radiall 691803004 type. The connector must be assembled by using the CAEN Mod. A995 Insertion/Extraction Tool, which allows to either insert or remove the pin contacts from the connector.
Compare
Compare with HV Connectors.
Loading...
Ordering Options
| Code | Description |
|---|---|
| WA996XAAAAAA | A996 - 52 pin cable connector for A173XB-A183XB-A1932A-A1535 RoHS |
Related Products

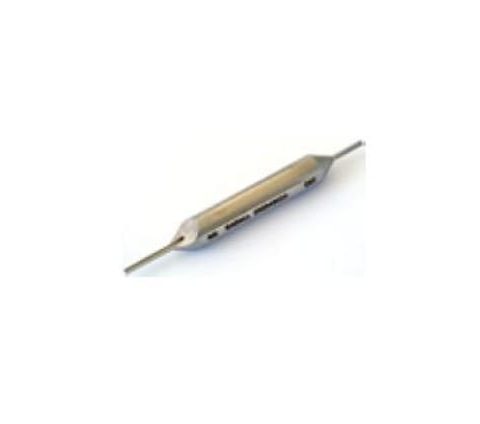

A995
