A992
16 Channel Impedance Adapter
Features
- Matches the QDC’s input impedance from 50 Ω to 110 Ω
- Decouples the QDC’s and the source’s ground
- Converts differential signals into single ended
Overview
The CAEN Mod. A992 is a plug-in card, provided with 16 independent input channels on a 34 pin male header connector, to be inserted into the Mod. V792 QDC’s front panel connectors (one V792 requires two A992 adapters). The card matches the QDC’s input impedance from 50 Ω to 110 Ω, decouples the QDC’s and the source’s ground and converts differential signals into single ended signals.
Technical Specifications
- Packaging
Shielded metal case
- Input Channels
16 channels on 17+17 pin, 3M 3431-6202 Header type connector
- Output Channels
16 channels on 17+17 pin, 3M 89134-0101 Header type connector
- Transformer
Core: PH 4322-020-34400
Coil-ratio: 7/5
Compare
Compare with General Adapters.
Loading...
Ordering Options
| Code | Description |
|---|---|
| WA992XAAAAAA | A992 - 16 Channel Impedance Adapter for V792 RoHS |
Related Products

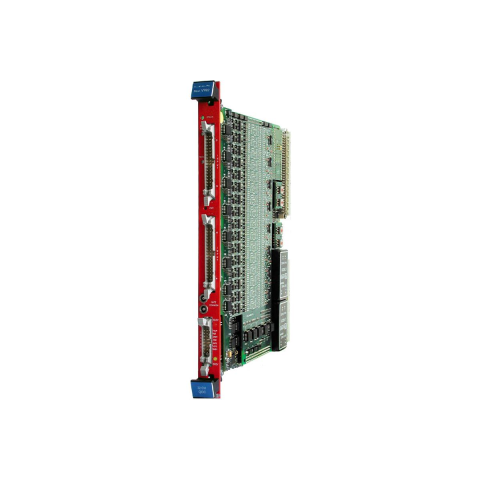

V792
