Overview

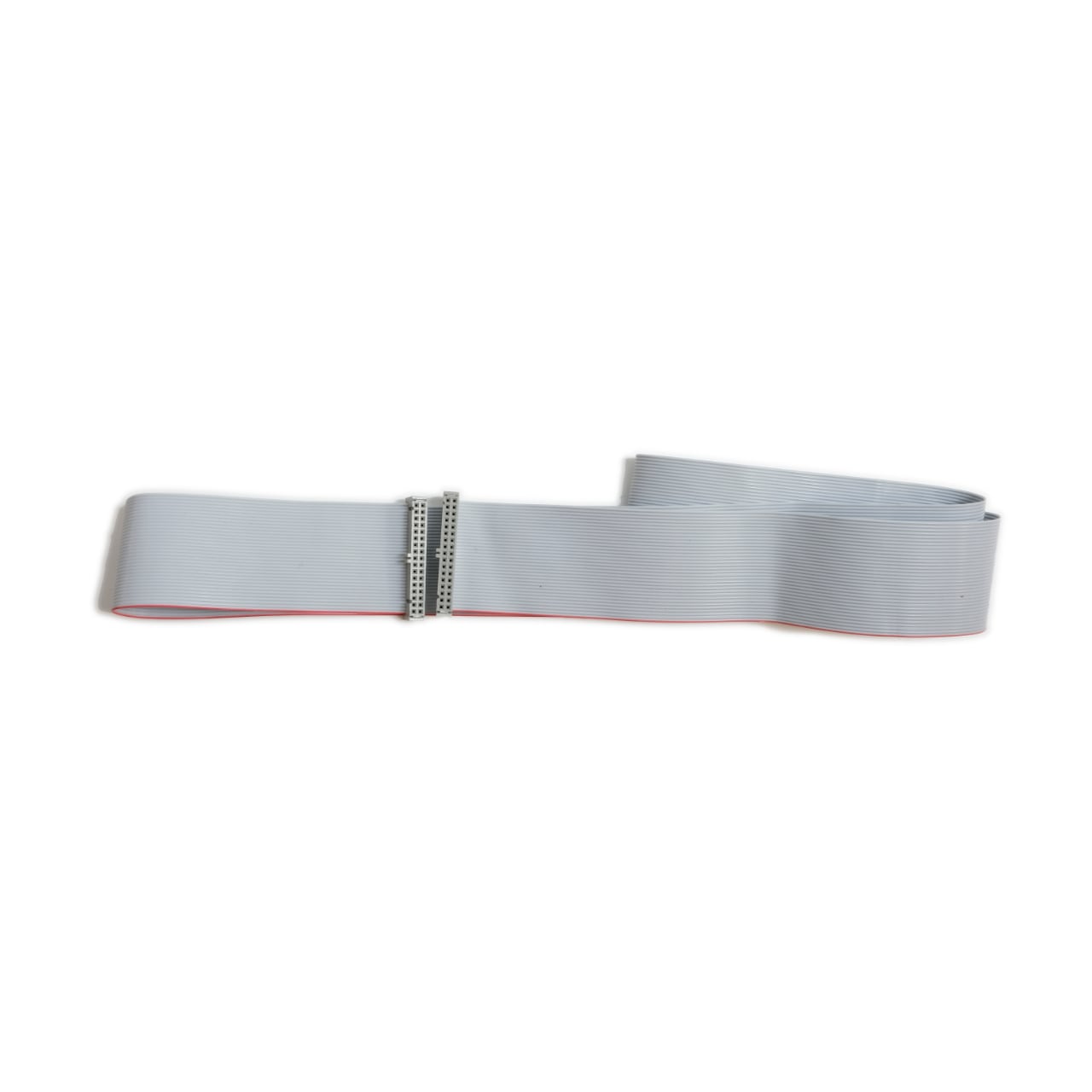

Multi-conductor 28 AWG 0.050″ center flat ribbon cable assembled with 2.54mm 34-pin header-type connector on both sides.
Examples of use:
- to connect Charge Sensitive Preamplifier, Spectroscopy Amplifier and Peak Sensing ADC in a Spectroscopy chain (e.g. A1442 + N1068DB + N6741)
- with CAEN boards equipped with the LVDS I/O connector (VME Digitizers Series 1, V1782 MCA, V1741 Peak Sensing ADC);
- with the inputs of V972.
Compare
Compare with General Adapters.
Loading...
Ordering Options
| Code | Description |
|---|---|
| WA952XAAAAAA | A952 - Cable assembly 2.54mm 34 pin female to 2.54mm 34 pin female - 50 cm RoHS |
Related Products

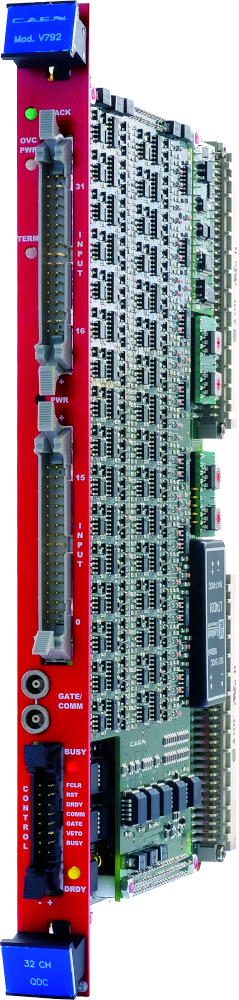

V792
