A83Px

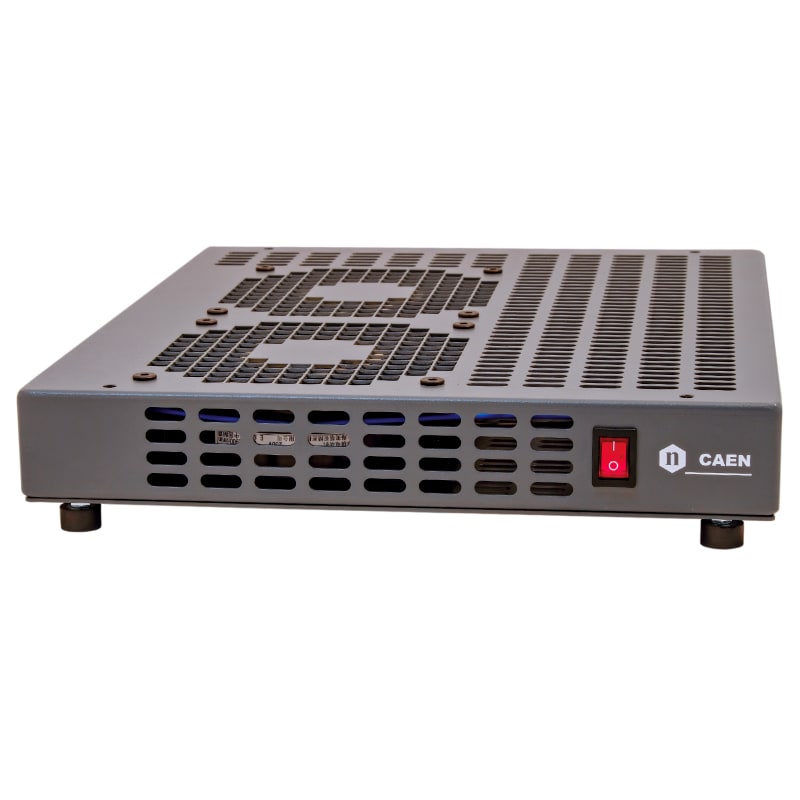

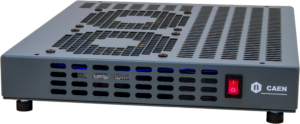

General Purpose 1U Mini Fan Unit

Features

  • 270 mm/1U rack module
  • 2 ventilation fans
  • 300m3/h air flow
  • Powered by 110 or 230 VAC 50/60Hz (35W)
  • 34dB noise level

Overview

A83Px is suitable yet cost effective solution to properly ventilate NIM modules operating in those NIM bins that are not provided with a fan tray. The units is powered by 110 or 230 V 50 ÷ 60 Hz AC (35 W). The Mod. NIM8302P crate can be cooled by inserting the A83PX mini fan unit underneath it. The fan unit is powered by 110 or 230 V 50÷60 Hz AC (35 W) and provides 300m3/h air flow.

A83Px is optimized to work with NIM830 2P portable crate (270 mm x 5U).

Technical Specifications

Packaging

270 mm/ 1U mountable fan tray; depth: 340 mm; weight: 3.2 kg

AC Input

110 or 230 VAC 50/60 Hz (35W)

Number of fans

2

Cooling Air Flow

300m3/h

Maximum Temperature environment

60°C

Life expectancy

20000 hours

Noise level

34 db

Compare

Compare with FAN Unit.

Loading...

Ordering Options

Code Description
WA83PXFANXAA A83PXA - General Purpose 1U Mini Fan Unit 220Vac   RoHS
WA83PXFANXAB A83PXB - General Purpose 1U Mini Fan Unit 110Vac   RoHS
