A649B
32 Channel Multipin Radiall to SHV connector Adapter (Max: 8kV - Desktop)
Features
- Desktop, Aluminium case
- 220 x 80 x 44 mm3
- Weight ~1.7 kg
- 52-pin Radiall input connector
- Radiall SHV output connectors (HV coaxial)
- Up to 8 kV
Overview

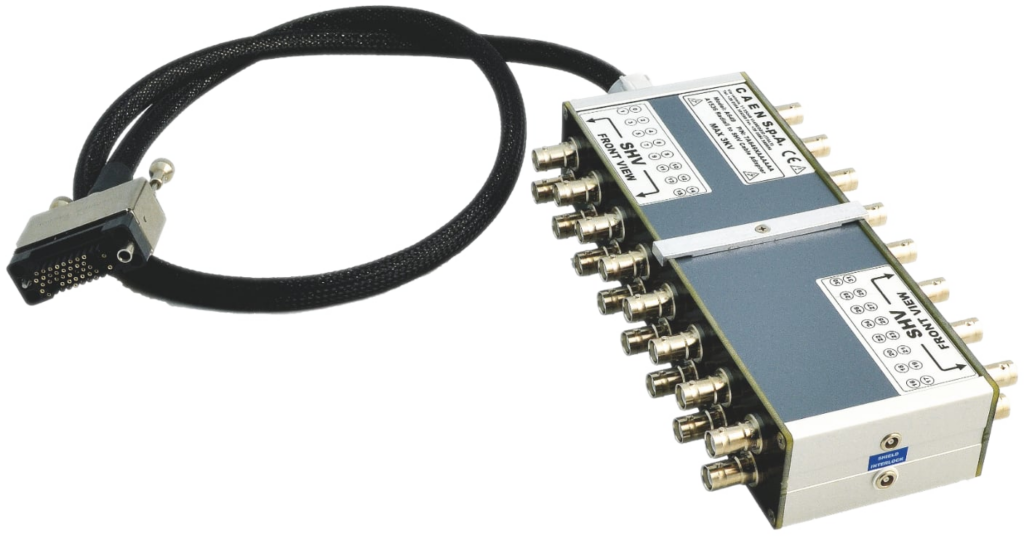

The A649B Multipin to SHV Adapter features:
- Fits one Radiall 691803004-type Multipin connector into 24 Radiall R317580-type SHV connectors
- INTERLOCK and SHIELD connections are provided through LEMO connectors
- Maximum input voltage: 8 kV
- Desktop mechanic
- Boards Supported:
- A1535 12/24 Channel 3.5 kV / 3 mA (8 W) Common Floating Return Boards
- A1550 12/24/32 Channel 5 kV / 1 mA Common Floating Return Boards
- A1560H 8/16 Channel 6 kV / 20 µA Common Floating Return Boards

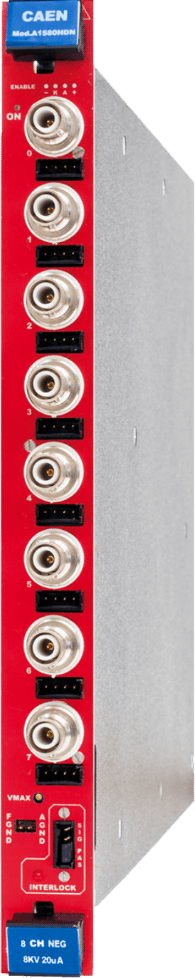

- A1580H 8/16 Channel 8 kV / 20 µA Common Floating Return Boards
- A1536 12/24/32 Channel 3 kV / 1 mA Common Floating Return Boards
- A1536H 12/24/32 Channel 3 kV, 1 mA / 100 µA Common Floating Return Dual Range Boards

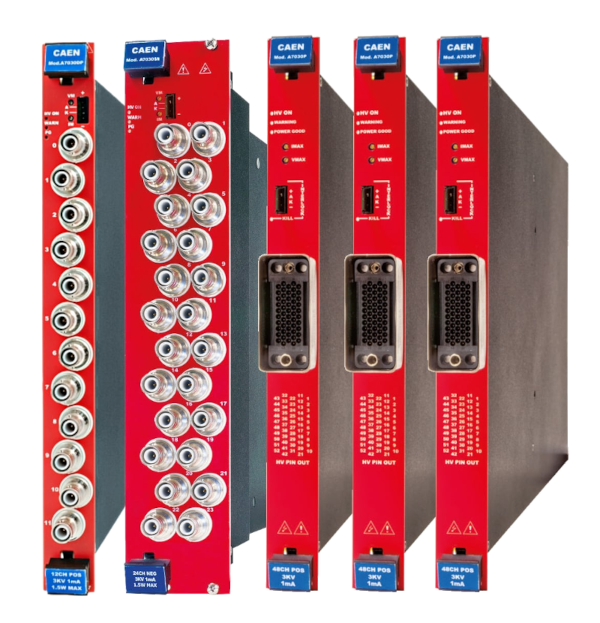

- A7030 12/24/36/48 Channel 3 kV / 1 mA (1.5W) Common Floating Return Boards
- AG7030 12/24/36/48 Channel 3 kV / 1 mA (1.5W) Common Ground Boards
- AG535 12/24 Channel 3.5 kV / 3 mA (6 W) Common Ground Boards
- AG536 32/24/12 Channel 3 kV / 1 mA Common Ground Boards
- AG550 12/24/32 Channel 5 kV / 1 mA Common Ground Boards
.
Compare
Compare with High Voltage Adapters.
