A646

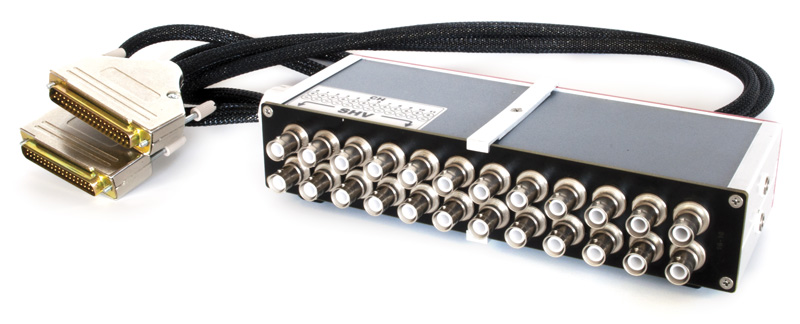

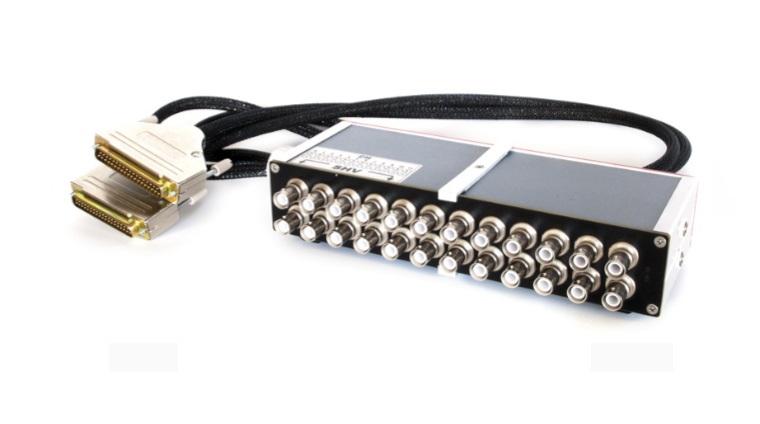

12 Channel DB37 to SHV connector Adapter (Max: 500 V - Desktop)
Features
- Desktop, Aluminium case
- 220 x 80 x 44 mm3
- Weight ~1.1 kg
- DB37 Male input connectors
- Radiall SHV output connectors (HV coaxial)
- Up to 500 V
Overview
The A646 DB37 to SHV Adapter features:
- Fits two DB37 connectors into 24 Radiall R317580-type SHV connectors
- INTERLOCK and SHIELD connections are provided through LEMO connectors
- Maximum input voltage: 500 V
- Desktop mechanic
- Boards Supported:
- A1510 12 Channel 100 V, 1/10mA Individual Floating Channel Dual Range Board
- A1511B 12 Channel 500 V, 1/10 mA Individual Floating Channel Dual Range Board
- A1512 12 Channel 500 V, 1 mA/100 µA Individual Floating Channel Dual Range Board
- A1519B 12 Channel 250 V, 0.1/1 mA Individual Floating Channel Dual Range Board
Technical Specifications
- Mechanics
Desktop; aluminium case; 220x80x44mm3; weight ~1.1kg
- Input connectors
2x ITT Cannon DCM-37P (DB37 Male)
- Output connectors
Radiall SHVR317580-type HV coaxial
- SHIELD
2x 00-type LEMO connectors; insert 0Ohm termination to short SHV Rtn with Shield Pin of the ITT Cannon DCM-37P (see also board manual)
- Cable
HV type, shielded, ~100cm length
- Maximum ratings
500V
Compare
Compare with High Voltage Adapters.
Loading...
Ordering Options
| Code | Description |
|---|---|
| WA646XAAAAAA | A646 - DB37 to SHV Adapter for 12 channel HV Boards (Max: 500V - Desktop) RoHS |
