A483

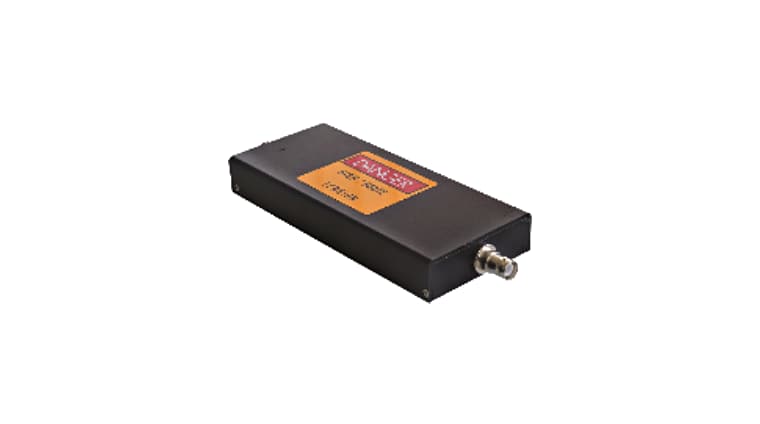

HV Bidirectional Passive HV Filter

Features

  • 8 kV Maximum Input Voltage
  • 20 dB Ripple Rejection
  • Passive Operation

Overview

The Mod. A483 is a bidirectional passive HV filter. The filter has a Maximum Input Voltage of ±8 kV. The Ripple Rejection is 20 dB (26 dB @ 36 KHz), measured with 50 mVpp (40 mVpp @ 36 KHz) input ripple, 8 kV Input DC Voltage and 8 µA Output Current.
It does not require any power supply since it is made up of passive components.
The module is designed to be used together with a HV Power Supply when a low ripple is required (E.G. for Ge-detector applications).
The High Voltage input and output are provided by SHV connectors.

Technical Specifications

Input range

±8 kV

Ripple Rejection

20 dB (26 dB @ 36 KHz)

I/O connectors

SHV

Input impedance

200 KOhm

A483

HV Bidirectional Passive HV Filter
Product page
A483
  • Documentation
  • Software
  • Firmware

Data Sheet

Name File extension File size Revision Last update
Safety Information and Product Support Service (ENG/ITA) PDF 1.84 MB - October 24th, 2022

Changelog:

Note:
Requirements:

License
Download

Release Notes:
Release_Notes.txt

Build:

Ordering Options

Code Description
WA483XAAAAAA A483 - HV Filter (8KV)   RoHS
