A3485

Obsolete

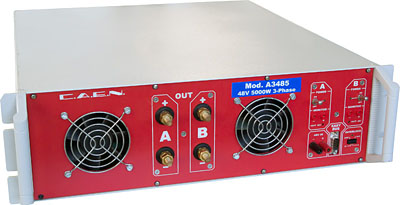

3-phase 400 Vac . 48 Vdc (2 ch x 2.5 kW) Converter

Features

  • 3U 19” Euro Rack, 50 cm deep
  • Dual 2.5 kW 48V output
  • 48V ± 10% output dynamics (remotely programmable)
  • 50 A maximum output current
  • Overcurrent protection
  • Voltage ripple smaller than 100 mV peak-to-peak
  • Local inhibit function

Overview

The CAEN Mod. A3485 is a two channel 400 Vac – 48 Vdc converter, which allows to integrate into the EASY channels control also the management of the 48 V power supplies. Features include local or remote control (Mod. A3485S only), overload protection and local or remote inhibit function.

blank Brass Hexagon Head Bold connector

Brass hexagon head set screw, M6x30mm for Mod.A3485

blank APP PC5933T connector

Vertical contact MINI P/CLAW APP PC5933T type for Mod.A3485

Consult our connectors reference page for technical information.

The module front panel houses LEDs and channels monitor signals.

Technical Specifications

Packaging
  • 19″-wide, 3U-high Euro-mechanics rack; Depth: 50 cm.
  • weight: 28kg
Output Polarity

Positive

Voltage

44 ÷ 52 V adjustable via software

Max. Output Power

5 kW

Voltage Ripple

< 100 mVpp

AC input

3-phase 400 V; 400 Hz

Compare

Compare with EASY3000 AC/DCs Converters.

Loading...

Ordering Options

Code Description
WA3485SXAAAA A3485S - AC/DC Converter for EASY3000 and EASY4000400 V 3-phase 48 V 5000 W with Remote Control  (Obsolete)
WA3485XAAAAA A3485 - AC/DC Converter for EASY3000 and EASY4000 400 V 3-phase 48 V 5000 W  (Obsolete)
