A1427 KIT

Low noise fast current preamplifier and discriminator

Features

A1427 Preamplifier characteristics

  • Fast non inverting preamplifier, negative output (EOUT)
  • Input impedance: 50 Ω AC coupled
  • Output high impedance (EOUT)
  • Bipolar output high impedance (FOUT)
  • Test input (TEST IN) impedance: 50 Ω, negative polarity
  • FOUT/DET IN gain (FOUT negative lobe):
    • FC version: 700÷2500
    • PR version: 500÷1500
  • FOUT/TEST IN gain: 1/100 of DET IN gain
  • Output noise (peak to peak) < 40 mV
  • Up to 3 kV detector bias voltage (HV IN)
  • Rbias: 200 kΩ

A1428 Discriminator characteristics:

  • Input polarity negative
  • Input impedance 50 Ω
  • Threshold -1 mV to -100 mV
  • Output: standard TTL signal
  • Maximum frequency 15 MHz for Fission Chamber
  • Maximum frequency 6 MHz for Proton Recoil

Overview

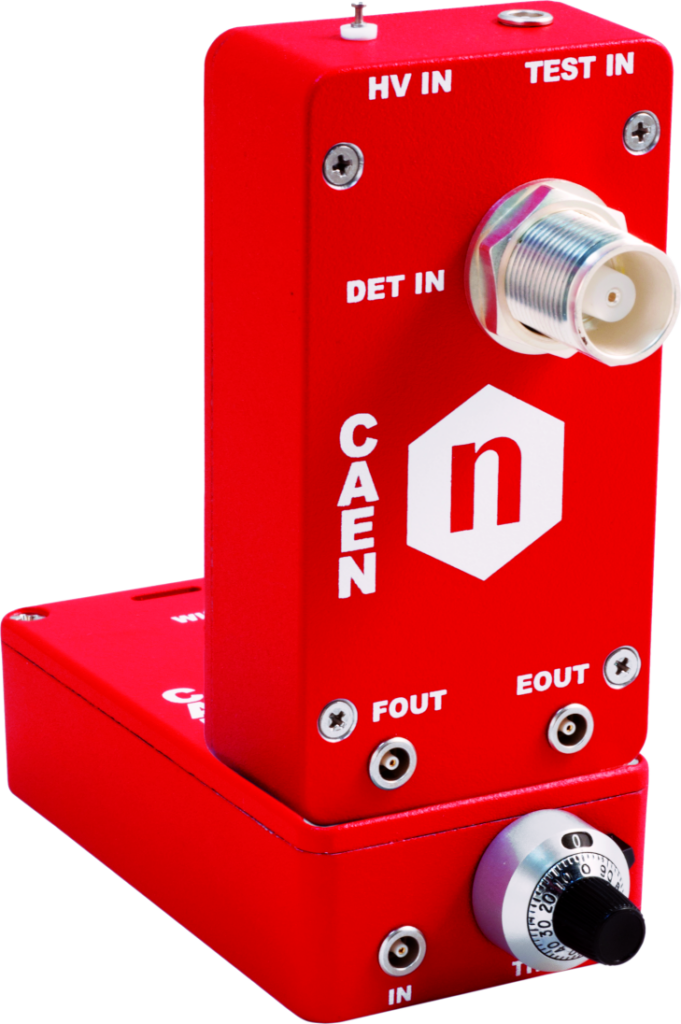

A1427 Kit contains a fast preamplifier (A1427) and a discriminator (A1428) assembled together. It is developed by CEA Saclay for the Cabri reactor in Cadarache and it is suitable for fission chambers, boron deposition proportional counters, 3He counters and proton recoil counters.

The A1427 Kit is designed to work with high counting rate and it is specifically studied to be not sensible to the external electromagnetic fields. CAEN provides two versions of the kit with different mechanics and connectors: one for desk use and one made for the Cabri reactor.

A1427 is a fast and low noise current preamplifier with AC coupled input. It hosts two outputs: EOUT (unipolar) that can be integrated to calculate the energy associated to the input signal and FOUT (bipolar) that can be used to calculate the rate of the input signal, discriminating the negative pole using the A1428 discriminator that is designed to fit with A1427. The discriminator thresholds is settable from -1 to -100 mV via a 10 turn rotary handle with lock.

The Kit is available in two different versions one for fission chambers (FC) the other for proton recoil detectors (PR).

We provide A1427 and A1428 separately and in the A1427 Kit configuration, that includes the A1427 and the A1428 assembled together, both for fission chambers and for proton recoil detectors.

Technical Specifications

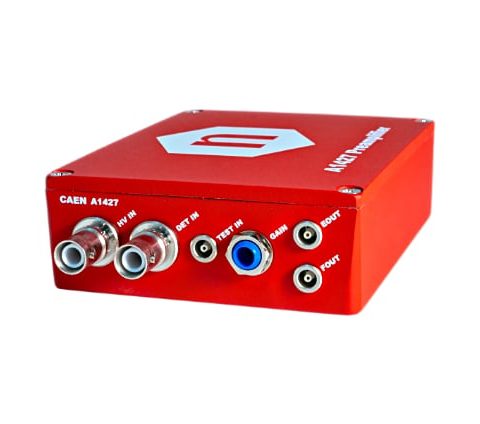

A1427 - Preamplifier

Packaging

Shielded box
Dimensions:
WxHxL: 91 x 139 x 39 mm; 91 x 119 x 39 mm (without connectors)
WxHxL A1427CA models: 61 x 112 x 55 mm; 61 x 112 x 31 (without connectors)

No. of Channels

1

Detector Input

SHV connector; accepts negative charge pulses, AC coupled, 50 Ohm input impedance.

A1427CA models: ATI INTERCO HN Connector 22323

HV Input

SHV connector, up to 3 KV for the detector bias, RBIAS 200 kOhm.

A1427CA models: Itt Cannon 011-2049-040FB9 Terminal

Test Input

LEMO connector, negative input, 50 Ohm input impedance;
GAIN = 1/100 of Detector IN

Fast Out

LEMO connector, bipolar output, high impedance (must be externally terminated with 50 Ohm impedance);

Dynamic range -2 V÷+1.3 V max;

Total duration (negative and positive lobe) A1427FC 120 ns, A1427PR 160 ns;

Width Out negative lobe: A1427FC 27.5 ns FWHM, A1427PR 40 ns FWHM;

Risetime negative lobe ≤12 ns;

Measured with TEST IN negative pulse, -13 mVpp vs. GND, across 50Ohm, 10ns rise/fall time, 50ns FWHM, 100kHz frequency

Energy Out

LEMO connector, non-inverting unipolar negative output, high impedance (must be externally terminated with 50 Ohm impedance);

Dynamic range 0÷-350 mV max;

Width Out 50 ns FWHM;

Risetime ≤19 ns;

Measured with TEST IN negative pulse, -13 mVpp vs. GND, across 50Ohm, 10ns rise/fall time, 50ns FWHM, 100kHz frequency

GAIN Voltage

Trimmer adjustable:

  • 700÷2500 on A1427FC;
  • 500÷1500 on A1427PR

(referred to amplitude of FOUT negative lobe, with DET IN signal; with TEST IN input, GAIN = 1/100 of nominal value)

FOUT/EOUT amplitude ratio:

  • A1427FC = 4
  • A1427PR = 5.6
Output noise

≤ 40 mV p.p. (measured with gain =1000 on FOUT A1427FC)
≤ 30 mV p.p. (measured with gain =700 on FOUT A1427PR)
≤ 7 mV p.p. (measured with gain =1000 on EOUT A1427FC)
≤ 4 mV p.p. (measured with gain =700 on EOUT A1427PR)

Power requirements

External power supply Switchbox FRA045-S12-4 (12 VDC, 3.75 A, 45 W);
Universal Input C14 receptacle;

INPUT Voltage range 100- 240VAC 1.2A 50-60Hz. Inrush current 40A at 115VAC / 80A at 230VAC max. Dielectric withstand Input/output 3,000VDC.

OUTPUT Output voltage +12V. Ripple and noise 2% p-p max. Load regulation ±5% max. No load stand by power <0.5W@ 230VAC. Efficiency >=85% for CEC requirement. Hold up time 10ms at nominal line. Protections OCP, OVP, over power & short circuit.

GENERAL Std output connector Dc barrel jack. Std output cable/length UL1185, #18AWG / 5 ft.

ENVIRONMENTAL Operating temperature 0°C to +40°C. Storage temperature –20°C to +85°C.

STANDARDS Safety standards IEC/UL/EN60950-1, CE, CB. EMC EN55022 (CISPR 22) class B, FCC class B.

A1427CA models: TE 282834-5; 1 GND, 2 +12V

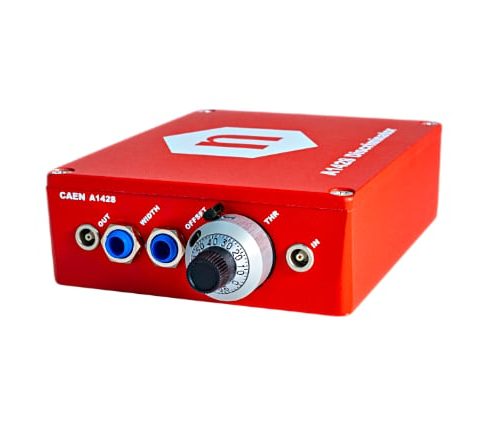

A1428 - Discriminator

Packaging

Shielded box
Dimensions:
WxHxL: 91 x 144 x 39 mm; 91 x 119 x 39 mm (without connectors)
WxHxL A1428CA models: 61 x 135 x 31; 61 x 112 x 31 mm (without connectors)

No. of Channels

1

Input

LEMO connector, negative polarity, AC coupled, 50 Ohm input impedance, minimum discriminated input: -4 mV.

Threshold

Vishay 11A11B10 Dial, with brake lever (LOCK);
Range: -1 mV to -100 mV, settable on 10 turns of the dial (10 mV/turn; 1 mV/division, e.g.: 5.40 on dial, leads to Threshold = -54.0 mV).

Output

LEMO connector, std. TTL signals (must be externally terminated with 50 Ohm impedance), rise time ≤ 6 ns, fall time ≤ 6 ns

Output Width

Trimmer settable;
A1428FC: 45÷100 ns FWHM;
A1428PR: 45÷200 ns FWHM

Offset

Trimmer settable; range -40÷+15 mV

Power requirements

External power supply Switchbox FRA045-S12-4 (12 VDC, 3.75 A, 45 W); Universal Input C14 receptacle;

INPUT Voltage range 100-240VAC 1.2A 50-60Hz. Inrush current 40A at 115VAC / 80A at 230VAC max. Dielectric withstand Input/output 3,000VDC.

OUTPUT Output voltage +12V. Ripple and noise 2% p-p max. Load regulation ±5% max. No load stand by power <0.5W@ 230VAC. Efficiency >=85% for CEC requirement. Hold up time 10ms at nominal line. Protections OCP, OVP, over power & short circuit.

GENERAL Std output connector Dc barrel jack. Std output cable/length UL1185, #18AWG / 5 ft.

ENVIRONMENTAL Operating temperature 0°C to +40°C. Storage temperature –20°C to +85°C.

STANDARDS Safety standards IEC/UL/EN60950-1, CE, CB. EMC EN55022 (CISPR 22) class B, FCC class B.

A1428CA models: TE 282834-5; 1 GND, 2 +12V

Ordering Options

Code Description
WK1427CABFCA A1427KIT with A1427 Cabri Preamp. for Fission Chamber A1428 Cabri Discrimin. for Fission   RoHS
WK1427CABPRA A1427KIT with A1427 Cabri Preamp. for Proton Recoil + A1428 Cabri Discrimin. for Proton Recoil   RoHS
WK1427FCAAAA A1427KIT with A1427 Preamp. for Fission Chamber + A1428 Discrimin. for Fission Chamber   RoHS
WK1427PRAAAA A1427KIT with A1427 Preamp. for Proton Recoil + A1428 Discrimin. for Proton Recoil   RoHS
