A1425

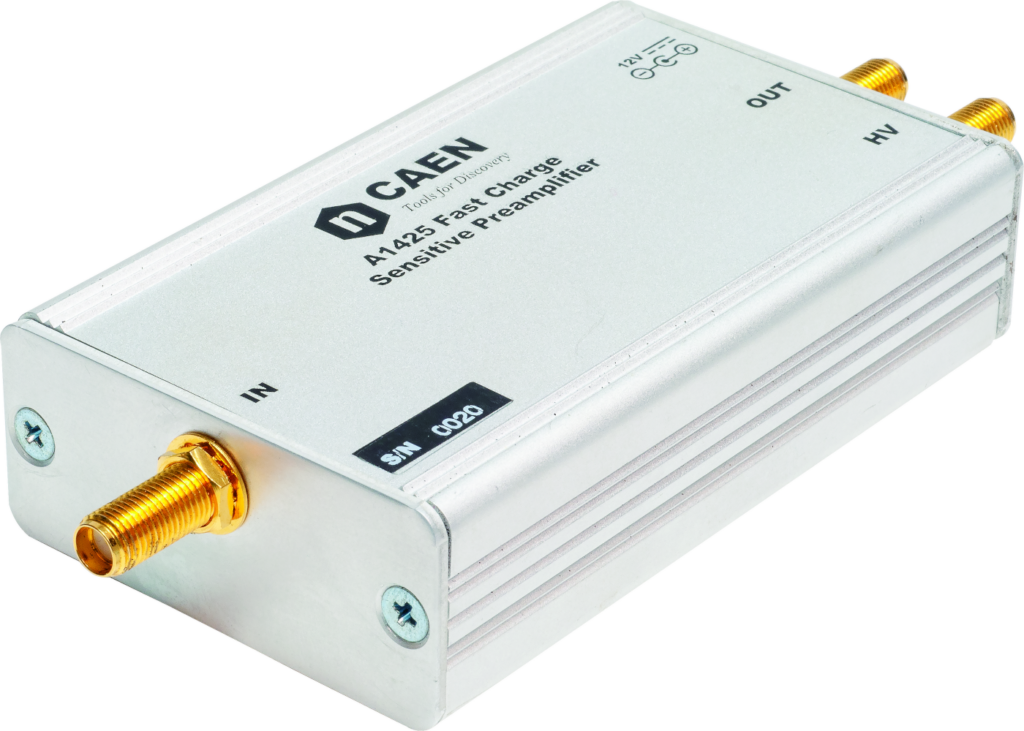

Fast Charge Sensitive Preamplifier

Features

  • Fast, inverting preamplifier
  • Sensitivity of 3.6 mV/fC
  • ENC of 0.16 fC (1000 e)
  • Output impedance of 50 Ohm
  • Output range 0 to 1 V
  • Up to 1 kV (positive or negative) detector bias voltage

Overview

The A1425 is a fast and low noise preamplifier with AC coupled input. The fast rise time makes it suited for amplifying the signals from detectors as fast silicon sensors and diamond detectors.
It has been designed for spectroscopy applications, and can be combined with sub-nanosecond measurements of particle time-of flight. It is optimized for high-speed single MIP particle detection with diamond detectors, where the signal integrated change is extremely small. It integrates a high voltage input for detector bias up to 1 kV.

Technical Specifications

Packaging

Shielded Box
Dimensions (WxHxD):
65 x 24 x 95 mm3 (without connectors)
65 x 24 x 110 mm3 (including connectors)
Weight: 134 g

No. of Channels

1

Mode

Inverting

Input Pulse polarity

Negative only

Sensitivity

3.6 mV/fC

ENC noise

0.16 fC (1000 e)

Output Range (V)

0 ÷ 1 (50 Ohm termination)

Output Impedance

50 Ohm

Detector HV Rating

1 kV

Power requirements

+12 V 30 mA (typical)
The module is powered by an external AC-DC stabilized power supply provided with the amplifier and included in the delivered kit.
