A1015G

14/16 Stacked Channel Multipin Radiall to SHV connector Adapter for A1515TG/A1515QG

Overview

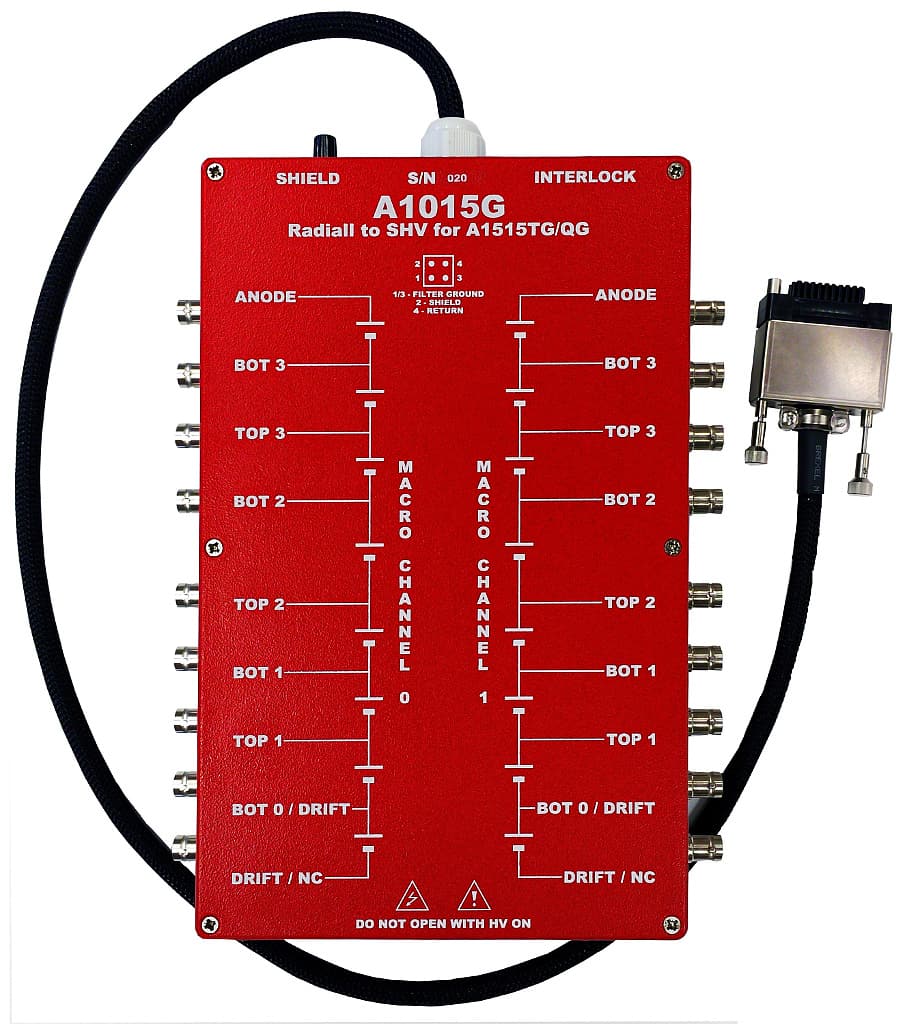

The CAEN A1015G is a 14/16 Stacked Channel Multipin Radiall to SHV connector Adapter for the A1515TG and A1515QG power supply modules.

  • Fits one Radiall 691803004-type Multipin connector ()  into 16 Radiall R317580-type SHV connectors
  • Desktop mechanic
  • INTERLOCK and SHIELD connections are provided through LEMO and Industrial Terminal  connectors
  • Maximum input voltage: 5 kV
  • It is possible to configure the output stages with a RC filter

Technical Specifications

Mechanics

Desktop module; aluminium case 275x175x63 mm3; weight ~1.7kg

Input connector

52-pin Radiall 691802002 [SCEM 09.41.34.700.2]

Output connectors

00-type LEMO connector; insert 50Ohm termination (provided with the kit) to refer INT_A to INT_B pin of the 52-pin Radiall 691802002 (see also board manual)

Shield

Industrial Terminal for 4mm plug and wire connection up to 2mm Ø; the terminal is connected with chassis and multipin cable shield. It can be referred to GND or RETURN (see also A1515 board manual)

Cable

HV type, shielded, ~100cm length

Maximum ratings

5 kV

Compare

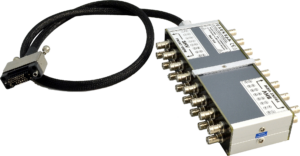

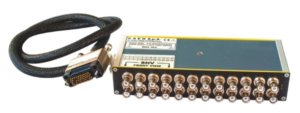

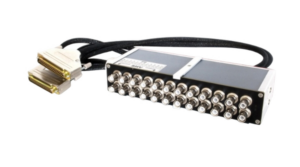

Compare with High Voltage Adapters.

Loading...

Ordering Options

Code Description
WA1015GXAAAA A1015G - 14/16 Stacked Channel Multipin Radiall to SHV connector Adapter for A1515TG/A1515QG   RoHS
