A1015

16 Floating Channel Multipin Radiall to SHV connector Adapter for A1515 board

Overview

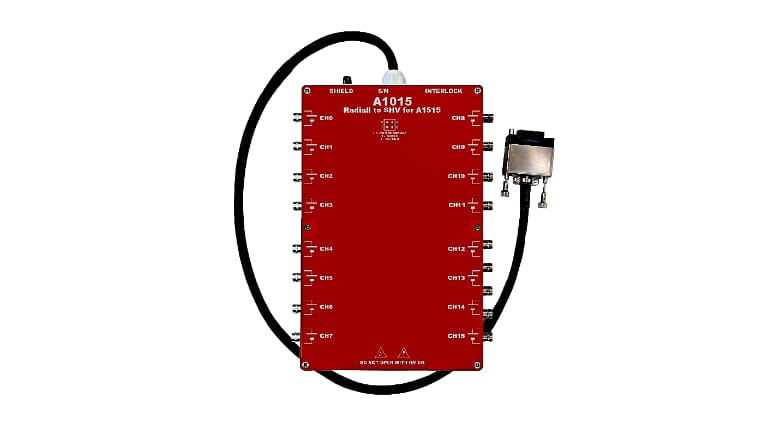

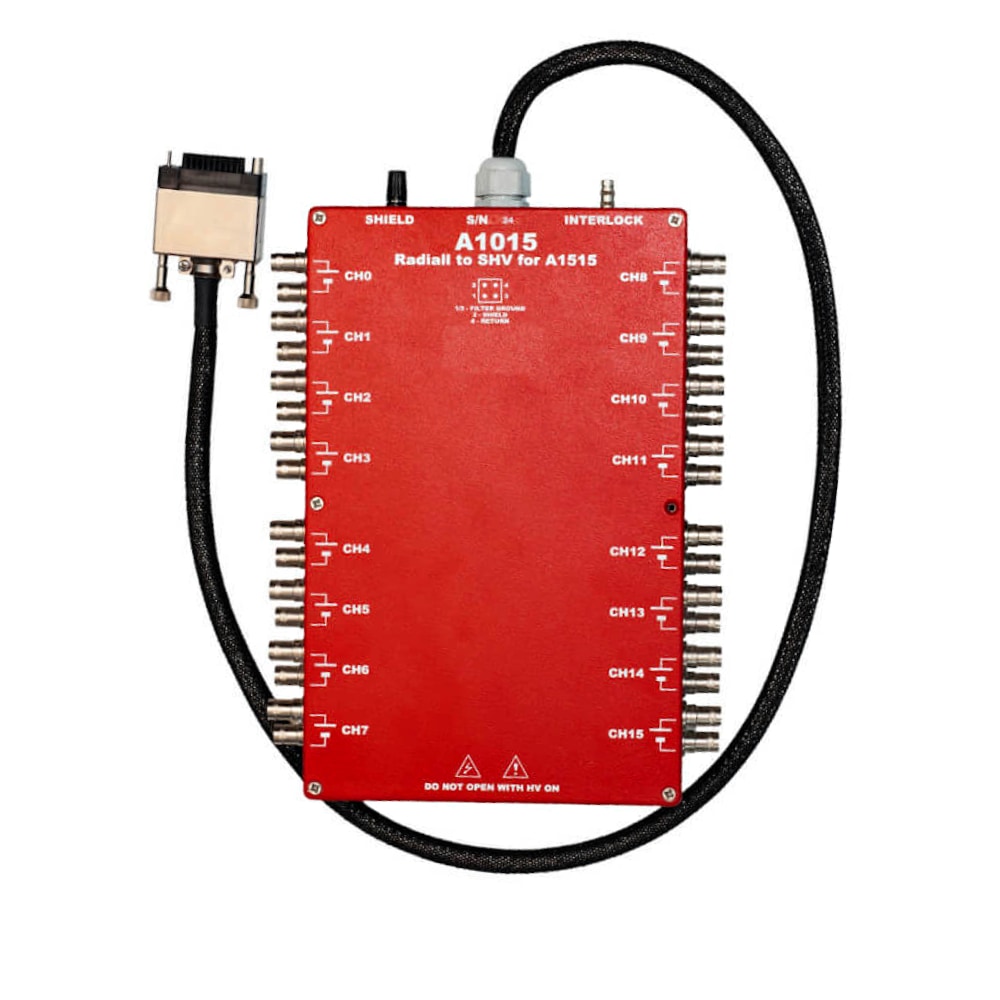

The CAEN Mod. A1015 is a 16 Floating Channel Multipin Radiall to SHV connector Adapter for the A1515 power supply series.

  • Fits one Radiall 691803004-type Multipin connector into 32 Radiall R317580-type SHV connectors.
  • Desktop mechanic.
  • INTERLOCK and SHIELD connections are provided through LEMO and Industrial Terminal connectors.
  • Maximum input voltage: 5 kV.

Technical Specifications

No. of Channels

16

Form Factor

Desktop

In Connectors

Multipin

Out Connectors

SHV

Maximum Voltage

5 kV

Compare

Compare with High Voltage Adapters.

Loading...

Ordering Options

Code Description
WA1015VMXAAA A1015VM - Analog Voltage Monitor for A1515/A1515TG/A1515QG boards   RoHS
WA1015XAAAAA A1015 - 16 Floating Channel Multipin Radiall to SHV connector Adapter for A1515 board   RoHS
