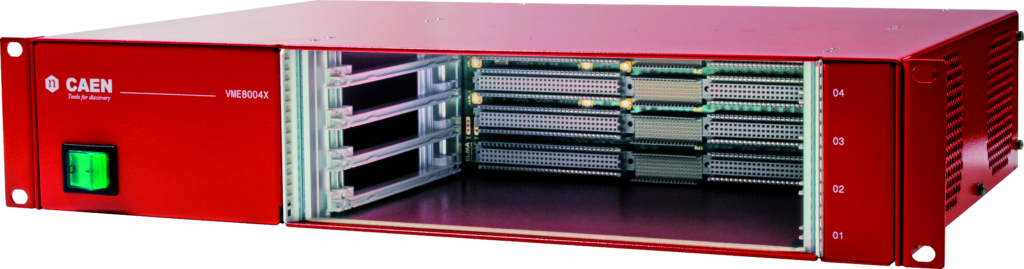

VME8004X

2U 4 Slot VME64X Mini Crate

Features

  • 19″ x 2U enclosure
  • 4 slot for 6U x 160mm VME modules
  • 450W Power Supply
  • Short circuit protection
  • VME64x J1/J2/J0 monolithic backplane
  • Horizontal Ventilation (side to side)
  • Powered by 100 – 240 Vac (50 – 60 Hz)

Overview

The CAEN  Mod.VME8004X is a 4 slot VME crate, suitable for 6U x 160mm boards, with VME64x compliant backplane. The Unit is powered by 100 – 240 Vac (50 – 60 Hz). The power distribution is 25A@+5V, 10A@+12V, 10A@-12V, 25A @3.3V. The VME8004X provides automatic daisy chain and supports CBLT data cycles.

Technical Specifications

Mechanics

19″ x 2U enclosure, depth: 290mm, weigth: 5.5kg; 4 slots 6U, 160mm VME boards

Mains Input

100 – 240 Vac (50 – 60 Hz); C14 type inlet

Backplane

VME64X J0/J1/J2, 4 slot Automatic daisy chain, CBLT compliant

Max Total Output Power

450 W

Output power

25A@+5V, 10A@-12V, 10A@+12V; 25A@+3.3V (VME8004X, VME8008X only)

Power Requirements

565W

Load Regulation

< 1 % for 0-100% load change @ +5 V, < 1 % for 0-100% load change @ ±12 V

Noise and ripple (backplane connector)

+5V: 10 mVpp; ±12V: 20 mVpp. Measured on 100nF ceramic in parallel to 10µF electrolytic

Power supply type

ROAL RCB600 power supply

Cooling Airflow

Horizontal Ventilation (side to side)

Compare

Compare with Powered Crates.

Loading...

Ordering Options

Code Description
WV8004XVME00 VME8004X - VME64x 2U Mini crate,4 Slot J1/J0/J2, (5V 25A, +12V 10A, -12V 10A, 3.3V 25A)   RoHS
