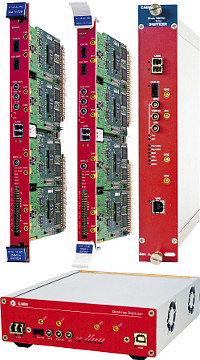

720 Digitizer Family

8/4/2 Channel 12-bit 250 MS/s Digitizer
The 720 is a family of 12-bit and 250 MS/s Flash ADC Waveform Digitizers with 2 Vpp of input dynamic range and DC offset adjustment. It is available in three form factors: VME (8 input channels), NIM (4 or 2 input channels) and Desktop (4 or 2 input channels). Considering the sampling frequency and the bit number, these digitizers are well suited for mid-fast signals as the ones coming from liquid or inorganic scintillators coupled to PMTs or Silicon Photomultipliers. The acquisition capabilities take advantage of the multi-buffer organization of the channel memory (divisible into a maximum of 1024 buffers). The data stream is continuously written in a circular memory buffer. When the trigger occurs, the digitizer writes further samples for the post trigger and freezes the buffer that can be read by one of the provided readout links. The acquisition can continue without any dead time in a new buffer.

Two memory sizes are available according to the different versions of the x720 model: 1.25 MS/ch or 10 MS/ch. The on-board FPGAs can run default firmware for waveform recording (including 'Zero suppression' and 'data reduction' methods that allow substantial savings in data amount readout and processing) as well as Digital Pulse Processing algorithms (DPP) making the digitizer an enhanced system for Physics applications. In addition to the existing firmware selection, CAEN is willing to collaborate with customers for developing custom solutions.

A common acquisition trigger signal can be provided externally, via front panel digital input connector, or via software. Alternatively, each channel can generate a trigger request when the input pulse goes under/over a programmable threshold; the trigger requests can be used either locally by the channel (independent triggering with DPP firmware) or processed by the board to generate a common trigger causing all the enable channels to acquire an event simultaneously (default firmware). The trigger from one board can be provided out on a front panel digital output connector.

720 family supports multi-board synchronization making a multi-board system where all ADCs result to be synchronized to a common clock source, and ensuring Trigger Time Tag alignment. Once synchronized,all data will be aligned and coherent across multiple x720 boards.

Refer to the following links for specific information on the different form factors: V1720, VX1720, DT5720, N6720.

CAEN Digitizers can be operated as pure waveform recorders or can run special algorithms to process the digitized pulses and extract a set of significant information like energy, pulse shape and precise timing.Each acquisition mode makes use of a specific firmware and software to tailor the digitizer capabilities to the user's needs.
GENERAL Form Factor
1-unit wide, 6U VME64/VME64X
1-unit wide NIM
154x50x164 mm3 (WxHxD) Desktop
ANALOG INPUT


Channels
8 channels
single ended / differential (VME)
4 or 2 channels
single ended (NIM, Desktop)

Impedance
50 Ohm single ended
100 Ohm differential
Connector
MCX single ended
AMP MODU II differential



Full Scale Range
2 Vpp
Bandwidth
125 MHz




Offset
Programmable DAC for DC offset adj.
Range: ± 1 V
DIGITAL CONVERSION


Resolution
12 bits
Sampling Rate
31.25 to 250 MS/s
symultaneously on each channel
ADC CLOCK GENERATION Clock source: internal/external
On-board PLL provides ADC sampling clock generation from an internal (50 MHz loc. oscillator) or external (front panel CLK-IN connector) reference
TRIGGER


Trigger Source
Self-trigger: channel over/under threshold for either Common or Individual (DPP only) trigger generation
External-trigger: Common by TRG-IN or individual by LVDS connectors (VME and DPP only)
Software-trigger: Common by software command
Trigger Propagation
TRG-OUT (VME) / GPO (NIM, Desktop) digital oputput

Trigger Time Stamp
Standard Firmware: 31-bit counter, 16 ns resolution, 17 s range
DPP-CI/PSD FW: 32-bit counter, 4 ns resolution, (17 s range), expandable to 64-bit
MEMORY 1.25 MS/ch or 10 MS/ch
Multi-Event Buffer with independent read and write access divisible into 1 ÷ 1024 buffers
Programmable event size and pre-post trigger
SYNCHRONIZATION


Clock Propagation
Daisy chain (VME only) through CLK-IN/CLK-OUT connectors
One-to-many clock distribution from
an external clock source
Clock Cable delay compensation
Acquisition Synchronization
Sync Start/Stop through digital I/O (S-IN, TRG-IN or GPI input, TRG-OUT or GPO output)
External Trigger Time Stamp reset
LVDS I/O (VME only) 16 general purpose LVDS I/Os controlled by FPGA
Busy, Data Ready, Memory Full, Individual Trg-Out and other functions can be programmed
An Input Pattern from the LVDS I/Os can be associated to each trigger as an event marker
ANALOG MONITOR
(VME only)
12-bit/100 MHz DAC FPGA controlled outup with four operating modes:
Trigger Majority / Test Pulses / Memory Occupancy / Voltage Level
COMMUNICATION INTERFACE


Optical Link
CAEN CONET proprietary protocol,
up to 80 MB/s transfer rate
Daisy chainable: it is possible to
connect up to 8/32 ADC modules to a
single Optical Link Controller (Mod.A2818/A3818)
USB (NIM and Desktop direct, VME via V1718 bridge)
USB 2.0 compliant
Transfer rate up to 30 MB/s

VME
VME 64X compliant
Data transfer mode: BLT32, MBLT64 (70 MB/s using CAEN Bridge), CBLT32/64, 2eVME, 2eSST (up to 200 MB/s)
POWER CONSUMPTIONS
Desktop
1.5 A @ 12 V (Typ.)
NIM
2.9 A @ +6 V
90 mA @ -6 V
VME
4 A @ +5 V
200 mA @ +12 V
200 mA @ -12 V
Code Description
WV1720BXAAAA OBSOLETED | V1720B - 8 Ch. 12 bit 250 MS/s Digitizer: 10MS/ch, C4, SE
WV1720CXAAAA OBSOLETED | V1720C - 8 Ch. 12 bit 250 MS/s Digitizer: 1.25MS/ch, C4, DIFF
WV1720DXAAAA OBSOLETED | V1720D - 8 Ch. 12 bit 250 MS/s Digitizer: 10MS/ch, C4, DIFF
WV1720EXAAAA V1720E - 8 Ch. 12 bit 250 MS/s Digitizer: 1.25MS/ch, C20, SE
WV1720FXAAAA OBSOLETED | V1720F - 8 Ch. 12 bit 250 MS/s Digitizer: 1.25MS/ch, C20, DIFF
WV1720GXAAAA V1720G - 8 Ch. 12 bit 250 MS/s Digitizer: 10MS/ch, C20, SE
WV1720XAAAAA OBSOLETED | V1720 - 8 Ch. 12 bit 250 MS/s Digitizer: 1.25MS/ch, C4, SE
WVX1720BXAAA OBSOLETED | VX1720B - 8 Ch. 12 bit 250 MS/s Digitizer: 10MS/ch, C4, SE
WVX1720CXAAA OBSOLETED | VX1720C - 8 Ch. 12 bit 250 MS/s Digitizer: 1.25MS/ch, C4, DIFF
WVX1720DXAAA OBSOLETED | VX1720D - 8 Ch. 12 bit 250 MS/s Digitizer: 10MS/ch, C4, DIFF
WVX1720EXAAA VX1720E - 8 Ch. 12 bit 250 MS/s Digitizer: 1.25MS/ch, C20, SE
WVX1720FXAAA OBSOLETED | VX1720F - 8 Ch. 12 bit 250 MS/s Digitizer: 1.25MS/ch, C20, DIFF
WVX1720GXAAA VX1720G - 8 Ch. 12 bit 250 MS/s Digitizer: 10MS/ch, C20, SE
WVX1720XAAAA OBSOLETED | VX1720 - 8 Ch. 12 bit 250 MS/s Digitizer: 1.25MS/ch, C4, SE
WDT5720AXAAA DISCONTINUED | DT5720A - 2 Ch. 12 bit 250 MS/s Digitizer: 1.25MS/ch, C4, SE
WDT5720BXAAA DT5720B - 4 Ch. 12 bit 250 MS/s Digitizer: 1.25MS/ch, C20, SE
WDT5720CXAAA DT5720C - 2 Ch. 12 bit 250 MS/s Digitizer: 1.25MS/ch, C20, SE
WDT5720DXAAA DT5720D - 4 Ch. 12 bit 250 MS/s Digitizer: 10MS/ch, C20, SE
WDT5720EXAAA DT5720E - 2 Ch. 12 bit 250 MS/s Digitizer: 10MS/ch, C20, SE
WDT5720XAAAA OBSOLETED | DT5720 - 4 Ch. 12 bit 250 MS/s Digitizer: 1.25MS/ch, C4, SE
WN6720AXAAAA OBSOLETED | N6720A - 2 Ch. 12 bit 250 MS/s Digitizer: 1.25MS/ch, C4, SE
WN6720BXAAAA N6720B - 4 Ch. 12 bit 250 MS/s Digitizer: 1.25MS/ch, C20, SE
WN6720CXAAAA N6720C - 2 Ch. 12 bit 250 MS/s Digitizer: 1.25MS/ch, C20, SE
WN6720DXAAAA N6720D - 4 Ch. 12 bit 250 MS/s Digitizer: 10MS/ch, C20, SE
WN6720EXAAAA N6720E - 2 Ch. 12 bit 250 MS/s Digitizer: 10MS/ch, C20, SE
WN6720XAAAAA OBSOLETED | N6720 - 4 Ch. 12 bit 250 MS/s Digitizer: 1.25MS/ch, C4, SE
