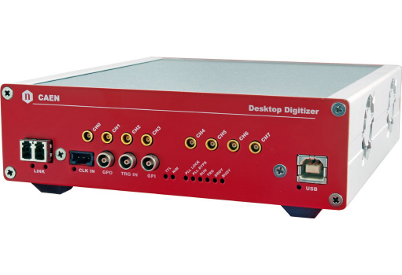

|DT5730 digitizer is provided with FPGAs that can run Digital Pulse Processing firmware for Physics Applications:|
DT5730 digitizer running DPP-PHA firmware becomes a digital replacement of Shaping Amplifier and Peak Sensing ADC (Multi-Channel Analyzer) by means of digital trapezoidal filters.
DT5730 digitizer running DPP-PSD firmware becomes a digital replacement of dual gate QDC, discriminator and gate generator.
DT5730 digitizer running DPP-ZLE firmware becomes able to transfer digitized waveforms in compressed mode thanks to an enhanced Zero Suppression algorithm.
154x50x164 mm3 (WxHxD) Desktop
Full Scale Range
0.5 or 2 Vpp
Programmable DAC for DC offset adj.
Range: ± 1 V
Simultaneously on each channel
|ADC CLOCK GENERATION||
Clock source: internal/external
On-board PLL provides ADC sampling clock generation from an internal (50 MHz loc. oscillator) or external (front panel CLK-IN connector) reference
CLK-IN (AMP Modu II)
AC coupled differential input clock
LVDS, ECL, PECL, LVPECL, CML
(single ended NIM/TTL available
by custom cable)
External trigger input
NIM/TTL, Zin = 50 Ohm
General purpose output
NIM/TTL, Rt = 50 Ohm
General purpose input
NIM/TTL, Zin = 50 Ohm
640 kS/ch or 5.12 MS/ch
Multi-Event Buffer with independent read and write access divisible into 1 ÷ 1024 buffers
Programmable event size and pre-post trigger
GPO digital output
Trigger Time Stamp
Standard FW, DPP-ZLE FW: 31-bit counter, 16 ns resolution, 17 s range
DPP-PSD FW: 31-bit counter, 2 ns resolution, (4 s range), expandable to 64-bit
DPP-PHA FW: 30-bit counter, 2 ns resolution (2 s range), expandable to 64-bit
One-to-many clock distribution from
an external clock source on CLK-IN
Clock Cable delay compensation
Sync Start/Stop through digital I/O (TRG-IN input, GPO output)
External Trigger Time Stamp reset
|ADC & MEMORY CONTROLLER FPGA||Altera Cyclone EP4CE30 (one FPGA serves 4 channels)|
CAEN CONET proprietary protocol,
up to 80 MB/s transfer rate
Daisy chainable: it is possible to
connect up to 8/32 ADC modules to a
single Optical Link Controller (Mod.A2818/A3818)
USB 2.0 compliant
Transfer rate up to 30 MB/s
Digital Oscilloscope function
Factory provided with the digitizer
Firmware can be upgraded via Optical Link
Special firmware for Digital Pulse Processing
DPP-PSD, DPP-PHA supported
DPP-ZLEplus COMING SOON
|POWER CONSUMPTIONS||2.8 A @ 12 V (Typ.)|
