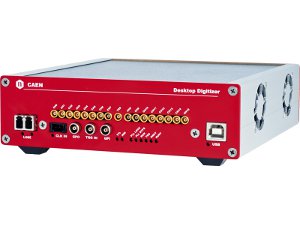

Desktop module: 154x50x164 mm3 (WxHxD)
Weight: 630 gr
1 special channel (TR0)
Zin = 50 Ohm
Full Scale Range (FSR)
Programmable 16-bit DAC for DC offset adjustment on each channel. Range ± 1 V
Switched Capacitor Array
Domino Ring Sampler chip (DRS4), 8+1 channels with 1024 storage cells each
5 GS/s - 2.5 GS/s - 1 GS/s - 0.75 GS/s SW selectable, simultaneously on each channel
Dead Time (A/D Conversion)
110 ?s, analog inputs only
181 ?s, digitizing TR0
|ADC Sampling Clock generation||
Clock source: internal/external.
On-board programmable PLL provides generation of the main board clocks from internal (50 MHz local Oscillator) or external (front panel CLK-IN connector) reference
CLK-IN (AMP Modu II)
AC coupled differential input clock
LVDS, ECL, PECL, LVPECL, CML (single ended NIM/TTL available by A318 adapter) Jitter < 100 ppm requested
Trigger digital output
Zin = 50 Ohm
Trigger digital output
Zin = 50 Ohm
External trigger digital input
Zin =50 Ohm
128 events/ch or 1024 events/ch (1024 S/event) Multievent Buffer
Independent read and write access; programmable event size and pre/post-trigger
- Fast (Low Latency) trigger: Common trigger by programmable threshold on TR0
- Self-trigger: Common trigger by combination of channels over/under threshold in logic OR
- External-trigger: Common trigger by TRG IN connector
- Software-trigger: Common trigger by software command
GPO programmable digital output
Trigger Time Stamp
8.5 ns resolution
9 s range
One-to-many: clock distribution from an external clock source on CLK-IN connector
Sync, Start/Stop through digital I/O (GPI or TRG-IN input / GPO output)
Trigger Time Stamps Alignment
By GPI input connector
|ADC and Memory controller FPGA||Altera Cyclone EP3C16 (one FPGA manages 16+1 channels)|
CAEN CONET proprietary protocol
Up to 80 MB/s transfer rate
Daisy-chain: it is possible to connect up to 8 or 32 ADC modules to a single Optical Link Controller (respectively A2818 or A3818)
USB 2.0 compliant
Up to 30 MB/s transfer rate
|Upgrade||Firmware can be upgraded via USB/Optical Link|
|Software||General purpose C libraries, configuration tools, readout software (Windows and Linux support)|
|Electrical Power||Voltage range: 12 ± 10% Vdc. Power consumption (typ.): 1.7A @12V|
