|CAEN provides also for this model two Digital Pulse Processing firmware for Physics Applications:|

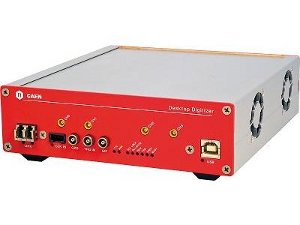

Desktop module:154x50x164 mm3 (WxHxD)
Weight: 680 gr
2/4 channels (MCX 50 Ohm)
Input range: 1 Vpp (default); 0.2 Vpp (on request)
Bandwidth: 500 MHz
Programmable DAC for Offset Adjustment x channel: Programmable DAC for Offset Adjustment x channel; adjustment range: ±0.5 V @ 1 Vpp, ±0.1 V @ 0.2 Vpp
Resolution: 10 bit
Sampling rate: 200 MS/s to 1 GS/s (2 GS/s in DES mode) simultaneously on each channel
|ADC Sampling Clock generation||
Three operating modes:
- PLL mode: internal reference (50 MHz loc. oscillator)
- PLL mode: external reference on CLK_IN (±100ppm tolerance)
- PLL Bypass mode: ext. clock on CLK_IN drives directly ADC clocks (Freq.: 200 MS/s to 1 GS/s)
CLK_IN (AMP Modu II):
- AC coupled differential input clock LVDS, ECL, PECL, LVPECL, CML(single ended NIM/TTL available by custom cable)
TRG_IN (LEMO 50 Ohm, NIM/TTL)
GPI/GPO (LEMO 50 Ohm, NIM/TTL)
1.835 MS/ch (3.6 MS/ch in DES mode) Multi Event Buffer
Programmable event size and pre-post trigger
Divisible into 1 ÷ 1024 buffers
Readout of Frozen buffer independent from write operations in the active buffer (ADC data storage)
- External (signal on TRG_IN)
- Self trigger (internal threshold self-trigger)
Daisy chain trigger propagation among boards (using GPO)
|Trigger Time Stamp||31-bit counter - 16 ns resolution - 17 s range|
|Multi Modules Synchronization||
Clock distribution: by Fan Out
Trigger distribution: by Daisy chain or Fan Out
Time stamp synchronization
|ADC and Memory controller FPGA||One Altera Cyclone III EP3C16 per channel|
Up to 30 MB/s transfer rate
|Upgrade||Firmware can be upgraded via Optical Link or USB interface|
CAEN proprietary protocol, up to 80 MB/s transfer rate
Daisy chainable: it is possible to connect up to 8/32 ADC modules to a single Optical Link Controller (Mod. A2818/A3818)
|Software||General purpose C and LabView LibrariesDemo and Software Tools for Windows and Linux|
|Electrical Power||Voltage range: 12 ± 10% Vdc. Power consumption (typ.): 1.8A @12V|
