A2932

DISCONTINUED
12/24/36/48 Channel 3 kV/250 µA Common Floating Return Distribution Boards
The high voltage distributors of the A2932 family are single or double width boards equipped with 12/24/36/48 distributed channels that provide a maximum output voltage of 3 kV (available both with positive and negative polarity).

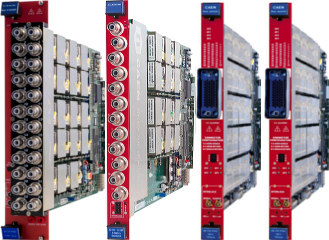

The A2932 is available in different versions equipped with SHV or with Radiall Multipin connector:

Radiall 52 pin connector


- Single width (5 TE wide), 48 channel (Mod. A2932)


- Single width (5 TE wide), 36 channel (Mod. A2932T) New


- Single width (5 TE wide), 24 channel (Mod. A2932L) New


SHV connector


- Single width (5 TE wide),12 channels (Mod. A2932D) New
- Double width (10 TE wide), 24 channels (Mod. A2932S)New


They house 1, 2, 3 or 4 Primary High Voltage Channels, which can supply 12 Distributed Output Channels each. The internal Primary HV Channel has a set of parameters that can be programmed, such as high voltage, current limit and voltage ramps. The voltage on each distributed channel can be independently programmed within a 10 ÷ 900 V drop from the Primary Channel voltage setting. The current on each distributed channel can be independently programmed and monitored up to 250 µA with a 10 nA resolution.

The 48 (36//24/12) output channels are organized into four (three/two/one) 12-channel Groups. Most functional parameters can be programmed individually for each output channel, while others, such as safety limits, can be set over a group or on the primary channel. The HV ramp rates may be selected independently for each channel in the range 1 ÷ 100 V/s, in 1 V/s steps.

The output channels share a Common Floating Return (the output voltages are not referred to ground reference of the crate). Both the floating return and the crate ground are available on front panel connectors. Each primary channel has hardware overcurrent protection; distributed channels have an overcurrent flag that can be used via software to switch off the related primary channel (by a programmable trip time setting).

For boards with Radiall 52 pin connector are available the following accessories:
  • Mate cable connector (Mod. A996) and relevant insertion/extraction tool (Mod. A995)
  • Radiall to SHV Adapter (Mod. A648)
No. of Channels 12 / 24 / 36 / 48 (Common Floating Return)
Polarity Positive / Negative depending on purchased version
Primary Voltage Set Value 0÷3.1 kV
Primary Current 3.2 mA max
Output Channel Voltage Set Value 0÷3 kV
Output Channel Current 250 µA
Current Set/Monitor Resolution 10 nA
Primary to Output drop 10÷900 V
Voltage Set resolution 100 mV
Ramp Up/Down 1÷500 Volt/sec, 1 Volt/sec step
Voltage Monitor vs. Output Voltage Accuracy ± 0.05% of reading ± 0.5 V
Voltage Ripple < 30 mVpp
Voltage Set vs. Output Voltage Accuracy ± 0.05% of setting ± 0.5 V
Current Monitor vs. Output Current Accuracy ± 0.1% ± 1 µA
Vout / Temperature coefficient 100ppm / °C
Imon / Temperature coefficient 100ppm / °C
Code Description
WA2932XAAAAA OBSOLETED | A2932N - SYx527 H.V. channels -3 KV/250 µA (5nA res) - Multipin Conn. common floating (48 ch)
WA2932XPAAAA OBSOLETED | A2932P - SYx527 H.V. channels +3 KV/250 µA (5nA res) - Multipin Conn. common floating (48 ch)
WA2932DXAAAA OBSOLETED | A2932DN - SYx527 H.V. channels -3 KV/250 µA - SHV Conn. common floating (12 ch)
WA2932DXPAAA OBSOLETED | A2932DP - SYx527 H.V. channels +3 KV/250 µA - SHV Conn. common floating (12 ch)
WA2932LXAAAA OBSOLETED | A2932LN - SYx527 H.V. channels -3 KV/250 µA - Multipin Conn. common floating (24 ch)
WA2932LXPAAA OBSOLETED | A2932LP - SYx527 H.V. channels +3 KV/250 µA - Multipin Conn. common floating (24 ch)
WA2932SXAAAA OBSOLETED | A2932SN - SYx527 H.V. channels -3 KV/250 µA - SHV Conn. common floating (24 ch 10TE wide)
WA2932SXPAAA OBSOLETED | A2932SP - SYx527 H.V. channels +3 KV/250 µA - SHV Conn. common floating (24 ch 10TE wide)
WA2932TXAAAA OBSOLETED | A2932TN - SYx527 H.V. channels -3 KV/250 µA - Multipin Conn. common floating (36 ch)
WA2932TXPAAA OBSOLETED | A2932TP - SYx527 H.V. channels +3 KV/250 µA - Multipin Conn. common floating (36 ch)
